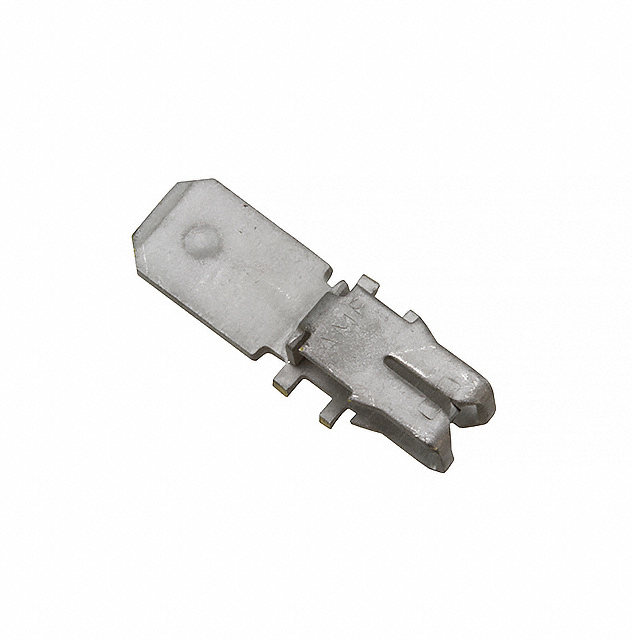

1217065-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG QC 0.187
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217065-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 20-22AWG QC 0.187
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217065-1 |
|---|---|
| Features | QC .187 |
| Size | 2 Liter |
| Style | 300 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| Tape & Reel (TR) | 108000 | $ 0.10 | ||
1217065 Series
CONN MAG TERM 20-22AWG QC 0.187
| Part | Style | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Terminal Type | Features | Size |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217065-1 | 300 | 20 AWG | 22 AWG | Quick Connect | Box IDC | QC .187 | 2 Liter |
Description
General part information
1217065 Series
Terminal Magnetic Connector 300 20-22 AWG Quick Connect
