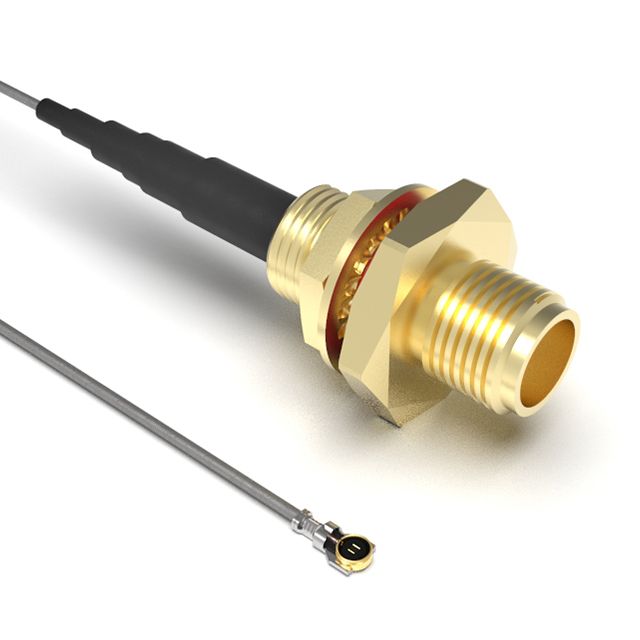

CAB427RF-0200-A-1

Active

GCT

CBL ASSY SMA-MHF5L JCK-PL 7.874"

Search across all available documentation for this part.

Active

GCT

CBL ASSY SMA-MHF5L JCK-PL 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	CAB427RF-0200-A-1

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Rear Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	IPEX MHF5L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Features	IP Rated Unmated
Frequency - Max [Max]	3 GHz
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length	7.874 in
Length	200 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to IPEX MHF5L

Part	2nd Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Color	Overall Impedance	1st Connector Mounting Feature	Cable Type	Features	Ingress Protection	2nd Connector	1st Connector	Cable Impedance	1st Contact Gender	Style	Length	Length
GCT CAB427RF-0200-A-1	Female	Panel Mount	Free Hanging (In-Line)	85 °C	-40 °C	3 GHz	Gray	50 Ohms	Bulkhead - Rear Side Nut	1.13mm OD Coaxial Cable	IP Rated Unmated	IP67/IP68 - Dust Tight Waterproof	IPEX MHF5L Plug Right Angle	SMA Jack	50 Ohms	Female	SMA to IPEX MHF5L	7.874 in	200 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 10.47

General part information

Cable Assembly Coaxial SMA to IPEX MHF5L 1.13mm OD Coaxial Cable 7.874" (200.00mm)
