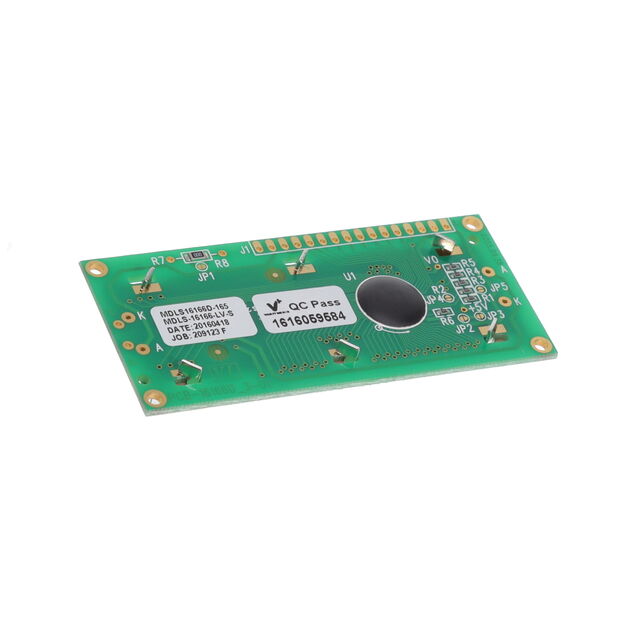

MDLS16166-LV-S

Active

Varitronix

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Varitronix

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

LCD MOD 16 DIG 16 X 1 REFLECTIVE

Part	Display Mode	Character Size [custom]	Character Size [custom]	Number of Characters	Operating Temperature [Max]	Operating Temperature [Min]	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Interface	Background Color	Display Type	Dot Size [y]	Dot Size [x]	Backlight	Display Format [x]	Display Format [y]	Text Color	Character Format [y]	Character Format [x]	Viewing Area [x]	Viewing Area [y]
Varitronix MDLS16166-LV-S	Reflective	3.15 mm	6.3 mm	16	50 °C	-5 °C	6.8 mm	36 mm	80 mm	Parallel	Green	TN - Twisted Nematic	0.7 mm	0.55 mm	Without Backlight	16	1	Black	8 Dots	5 Dots	64.5 mm	13.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.61

General part information

Character Display Module Reflective 5 x 8 Dots TN - Twisted Nematic Without Backlight Parallel 80.00mm x 36.00mm x 6.80mm
