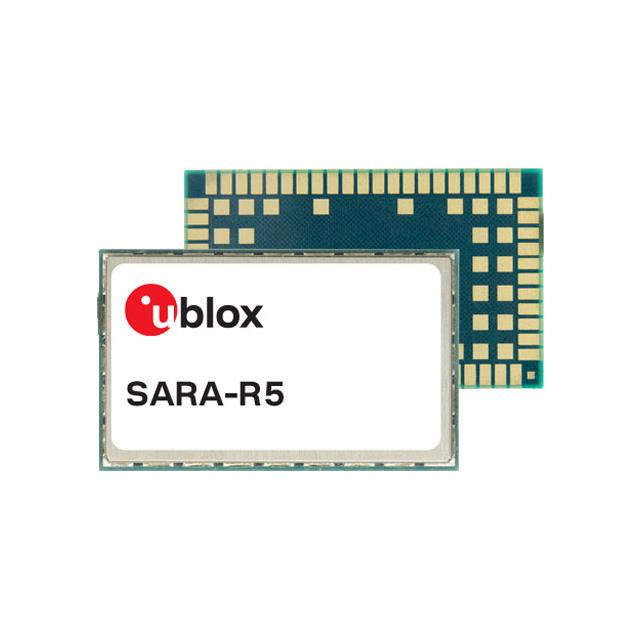

SARA-R500S-61B

Active

u-blox

RF TXRX MODULE CELL SMD

Deep-Dive with AI

Search across all available documentation for this part.

SARA-R500S-61B

Active

u-blox

RF TXRX MODULE CELL SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 46.19
		10	$ 34.64
		50	$ 29.44
	Digi-Reel®	1	$ 46.19
		10	$ 34.64
		50	$ 29.44
	Tape & Reel (TR)	250	$ 24.06

Description

General part information

SARA-R500 Series

Cellular 5G, BeiDou, CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, HSPA, LTE, UMTS Transceiver Module 600MHz, 700MHz, 750MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SARA-R500S-61B	SARA-R500 Series

Accessory Type	-	Adapter Board
Antenna Type	Antenna Not Included	Antenna Not Included
Current - Receiving [Max]	195 mA	195 mA
Current - Receiving [Min]	85 mA	85 - 95 mA
Current - Transmitting [Max]	395 mA	395 mA
Current - Transmitting [Min]	85 mA	85 - 95 mA
Data Rate	1.2 Mbps	1.2 Mbps
For Use With/Related Products	-	SARA-R500E
Frequency	850 MHz, 600 MHz, 2100 MHz, 1900 MHz, 1800 MHz, 900 MHz, 800 MHz, 750 MHz, 1.7 GHz, 700 MHz	1.7 - 2100 MHz
Modulation	QPSK	QPSK
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	96-SMD Module	96-SMD Module
Power - Output	23 dBmW	23 dBmW
Protocol	HSPA, UMTS, CDMA, 5G, GPRS, GPS, Galileo, GNSS, GLONASS, Beidou, LTE	UMTS, HSPA, Galileo, LTE, GNSS, GLONASS, Beidou, GPS, CDMA, GPRS, 5G
RF Family/Standard	Cellular	Cellular, Navigation
Sensitivity	-167 dBm	-167 dBm
Serial Interfaces	-	SPI, I2C, USB, I2S, SDIO, GPIO, UART
Utilized IC / Part	UBX-R5	UBX-R5, SARA-R500E
Voltage - Supply [Max]	4.4 V	4.4 V
Voltage - Supply [Min]	3.3 V	3.3 V

SARA-R500 Series

RF TXRX MOD CELL NAV SMD

Part	Serial Interfaces	Mounting Type	Sensitivity	Protocol	Package / Case	Current - Transmitting [Max]	Current - Transmitting [Min]	Frequency	Data Rate	Modulation	Power - Output	RF Family/Standard	Utilized IC / Part	Antenna Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Accessory Type	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]
u-blox SARA-R500E-01B	GPIO, I2C, I2S, SDIO, SPI, UART, USB	Surface Mount	-167 dBm	Beidou, CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, HSPA, LTE, UMTS	96-SMD Module	395 mA	85 mA	1.7 GHz, 600 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	1.2 Mbps	QPSK	23 dBmW	Cellular, Navigation	UBX-R5	Antenna Not Included	3.3 V	4.4 V	85 mA	195 mA
u-blox ADP-SARA-R500E-01													SARA-R500E						Adapter Board	SARA-R500E
u-blox SARA-R500S-01B		Surface Mount	-167 dBm	5G, Beidou, Galileo, GLONASS, GNSS, GPS, LTE	96-SMD Module	395 mA	95 mA	1.7 GHz, 600 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	1.2 Mbps		23 dBmW	Cellular, Navigation	UBX-R5	Antenna Not Included	3.3 V	4.4 V	95 mA	195 mA			85 °C	-40 °C
u-blox SARA-R500S-61B		Surface Mount	-167 dBm	5G, Beidou, CDMA, Galileo, GLONASS, GNSS, GPRS, GPS, HSPA, LTE, UMTS	96-SMD Module	395 mA	85 mA	1.7 GHz, 600 MHz, 700 MHz, 750 MHz, 800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz	1.2 Mbps	QPSK	23 dBmW	Cellular	UBX-R5	Antenna Not Included	3.3 V	4.4 V	85 mA	195 mA
