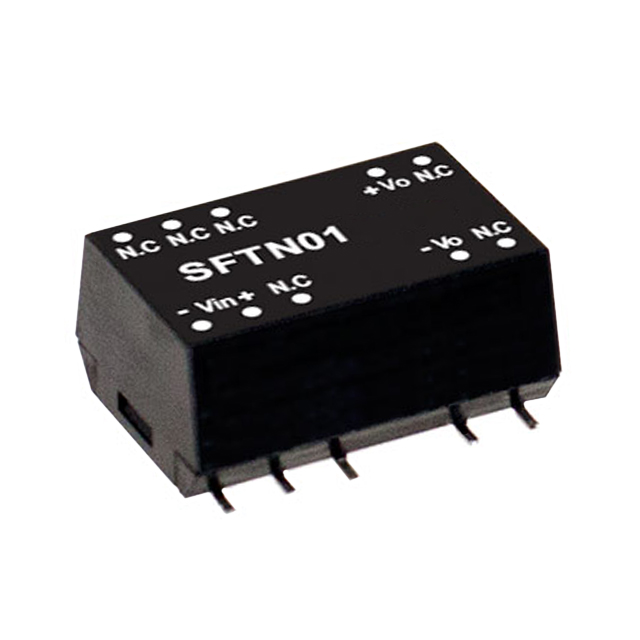

SFTN01N-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SFTN01N-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SFTN01N-12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 84 mA |
| Efficiency | 75 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10 Leads |
| Package / Case | 12-SMD Module |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 10.7 mm |
| Size / Dimension [y] | 0.42 " |
| Size / Dimension [z] | 7.1 mm |
| Size / Dimension [z] | 0.28 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 5.86 | |
| 5 | $ 5.46 | |||
| 10 | $ 5.38 | |||
Description
General part information
SFTN01 Series
Isolated Module DC DC Converter 1 Output 12V 84mA 21.6V - 26.4V Input
