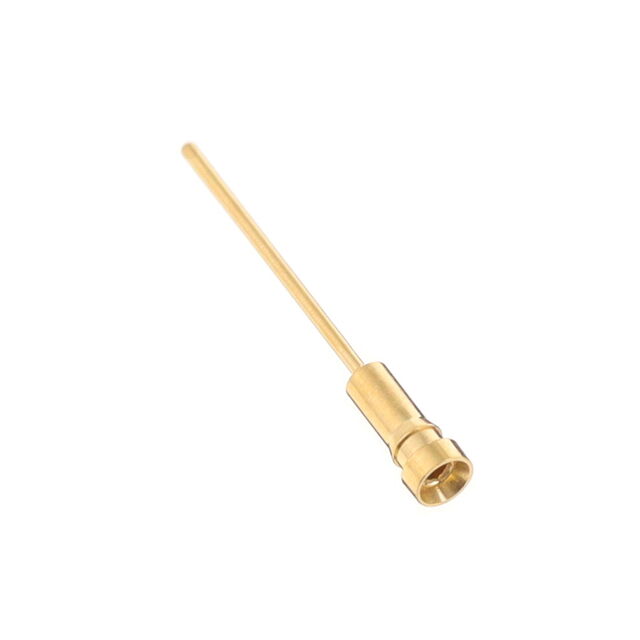

0133-0-15-15-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0133-0-15-15-30-27-04-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0133-0-15-15-30-27-04-0	0133-0 Series

Accepts Pin Diameter [Max]	0.025 "	0.025 "
Accepts Pin Diameter [Max]	0.64 mm	0.64 mm
Accepts Pin Diameter [Min]	0.015 "	0.015 "
Accepts Pin Diameter [Min]	0.38 mm	0.38 mm
Contact Finish	Gold	Tin-Lead, Gold, Tin
Contact Finish Thickness	0.76 Ám	0.25 - 2.54 µm
Contact Finish Thickness	30 Áin	10 - 100 µin
Contact Material	Beryllium Copper	Beryllium Copper
Flange Diameter [diameter]	1.83 mm	1.83 mm
Flange Diameter [diameter]	0.072 in	0.072 in
Length - Overall	14.1 mm	14.1 mm
Length - Overall [x]	0.555 "	0.555 "
Mounting Hole Diameter [diameter]	1.5 mm	1.5 mm
Mounting Hole Diameter [diameter]	0.059 in	0.059 in
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Socket Depth	3.81 mm	3.81 mm
Socket Depth	0.15 in	0.15 in
Tail Diameter [diameter]	0.02 in	0.02 in
Tail Diameter [diameter]	0.51 mm	0.51 mm
Tail Type	Standard Tail	Standard Tail
Termination	Press-Fit	Press-Fit

0133-0 Series

CONN PIN RCPT .015-.025 PRESSFIT

Part	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall [x]	Termination
Mill-Max Manufacturing Corp. 0133-0-15-01-30-02-04-0	Tin-Lead	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	2.54 µm	100 µin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-01-30-27-04-0	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.76 Ám	30 Áin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-15-30-27-04-0	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.76 Ám	30 Áin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-80-30-14-04-0	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.25 Ám	10 Áin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-80-30-27-04-0	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.76 Ám	30 Áin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-80-30-84-04-0	Tin	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	2.54 µm	100 µin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit
Mill-Max Manufacturing Corp. 0133-0-15-01-30-14-04-0	Gold	0.025 "	0.64 mm	0.015 "	0.38 mm	1.5 mm	0.059 in	0.02 in	0.51 mm	Beryllium Copper	Standard Tail	1.83 mm	0.072 in	3.81 mm	0.15 in	0.25 Ám	10 Áin	-55 °C	125 °C	14.1 mm	0.555 "	Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.47
		10	$ 1.28
		25	$ 1.22
		50	$ 1.20
		100	$ 1.14
		250	$ 1.03
		500	$ 0.95
		1000	$ 0.82
		3000	$ 0.76

Description

General part information

0133-0 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Standard Tail Press-Fit
