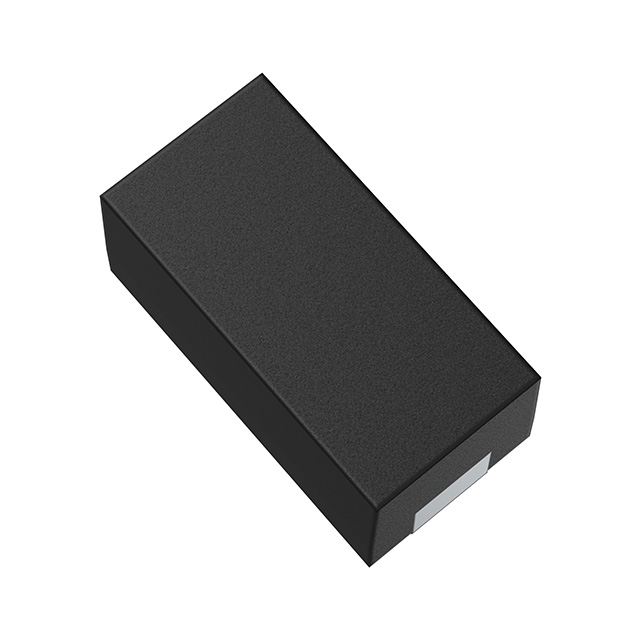

DF2B7BSL,L3F - DF2B7BSL,L3F

DF2B7BSL,L3F

Active
Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM 16VC SL2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
DF2B7BSL,L3F - DF2B7BSL,L3F

DF2B7BSL,L3F

Active
Toshiba Semiconductor and Storage

TVS DIODE 5.5VWM 16VC SL2

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationDF2B7BSL,L3F
ApplicationsGeneral Purpose
Bidirectional Channels [custom]1
Capacitance @ Frequency12 pF
Current - Peak Pulse (10/1000µs)7.3 A
Mounting TypeSurface Mount
Operating Temperature150 °C
Package / Case2-SMD, No Lead
Power - Peak Pulse115 W
Power Line ProtectionFalse
Supplier Device PackageSL2
TypeZener
Voltage - Breakdown (Min) [Min]5.6 V
Voltage - Clamping (Max) @ Ipp [Max]16 V
Voltage - Reverse Standoff (Typ)5.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.18
10$ 0.11
100$ 0.07
500$ 0.05
1000$ 0.04
2000$ 0.04
5000$ 0.03
Digi-Reel® 1$ 0.18
10$ 0.11
100$ 0.07
500$ 0.05
1000$ 0.04
2000$ 0.04
5000$ 0.03
Tape & Reel (TR) 10000$ 0.03
20000$ 0.03
30000$ 0.03
50000$ 0.02
70000$ 0.02
100000$ 0.02
250000$ 0.02
500000$ 0.02

Description

General part information

DF2B7 Series

16V Clamp 7.3A (8/20µs) Ipp Tvs Diode Surface Mount SL2
