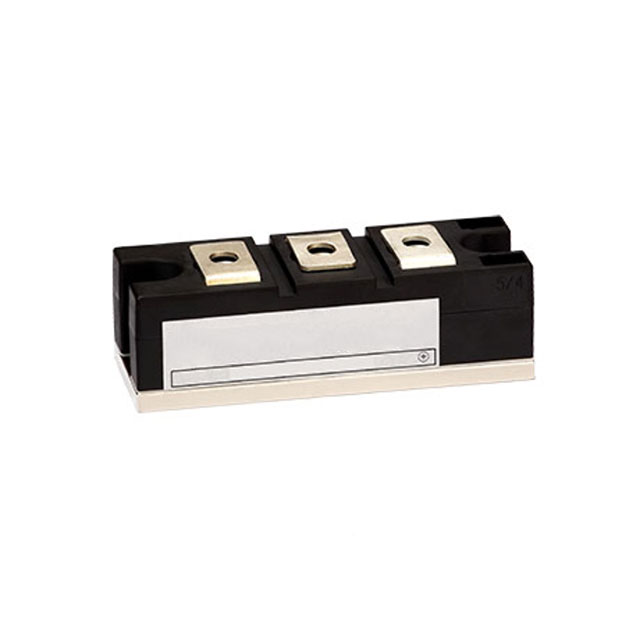

ND171N18KHPSA2

Active

Infineon Technologies

DIODE GEN PURP 1.8KV 171A

Search across all available documentation for this part.

Active

Infineon Technologies

DIODE GEN PURP 1.8KV 171A

Technical Specifications

Parameters and characteristics for this part

Specification	ND171N18KHPSA2

Current - Average Rectified (Io)	171 A
Current - Reverse Leakage @ Vr	20 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction	150 ¯C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1800 V
Voltage - Forward (Vf) (Max) @ If	1.26 V

Part	Mounting Type	Package / Case	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Technology	Current - Reverse Leakage @ Vr
Infineon Technologies ND171N18KHPSA2	Chassis Mount	Module	171 A	1800 V	Standard Recovery >500ns	200 mA	150 ¯C	1.26 V	Standard	20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1800 V 171A Chassis Mount
