622-025-360-045

Active

EDAC Inc.

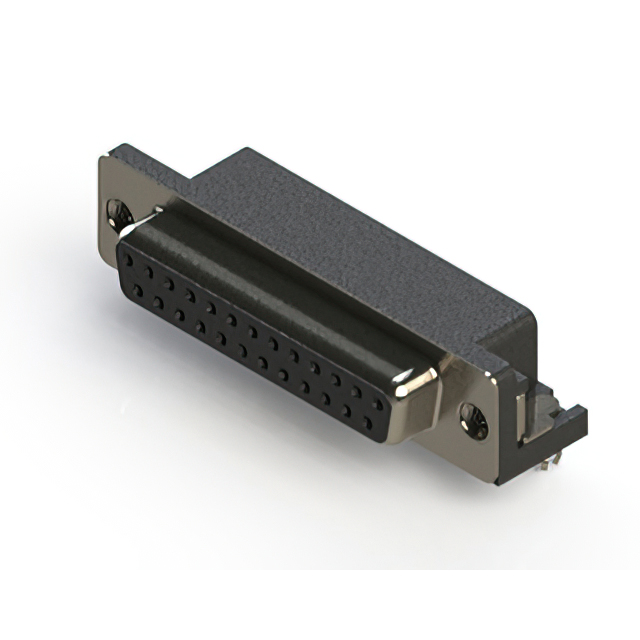

622 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

622-025-360-045

Active

EDAC Inc.

622 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-025-360-045

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

622-025 Series

...

Part	Contact Material	Material Flammability Rating	Shell Material, Finish	Current Rating (Amps)	Contact Finish	Contact Type	Backset Spacing	Backset Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Connector Style	Features	Connector Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Mounting Type	Contact Finish Thickness
EDAC Inc. 622-025-360-052	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Mounting Brackets Shielded	Receptacle Female Sockets	Housing/Shell (4-40)	15 µin	0.38 µm	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-368-013	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Filter Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	15 µin	0.38 µm	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-360-045	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Housing/Shell (M3)	15 µin	0.38 µm	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-360-556	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	125 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (M3) Mating Side	15 µin	0.38 µm	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-268-513	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	125 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Filter Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side			Polyester Thermoplastic	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 622-025-260-036	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (M3) Mating Side			Polyester Thermoplastic	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 622-025-368-056	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Filter Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (M3) Mating Side	15 µin	0.38 µm	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-260-050	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Mounting Brackets Shielded	Receptacle Female Sockets	4-40			Polyester Thermoplastic	Board Edge Right Angle Through Hole	Flash
EDAC Inc. 622-025-660-033	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	85 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	30 Áin	0.76 Ám	Polyester Thermoplastic	Board Edge Right Angle Through Hole
EDAC Inc. 622-025-268-543	Copper Alloy	UL94 V-0	Nickel Plated Steel	3 A	Gold	Signal	8.08 mm	0.318 "	125 °C	-55 °C	Solder	Black	B DB	3	2	D-Sub	Board Lock Filter Mounting Brackets Shielded	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side			Polyester Thermoplastic	Board Edge Right Angle Through Hole	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 4.76

Description

General part information

622-025 Series

25 Position D-Sub Receptacle, Female Sockets Connector
