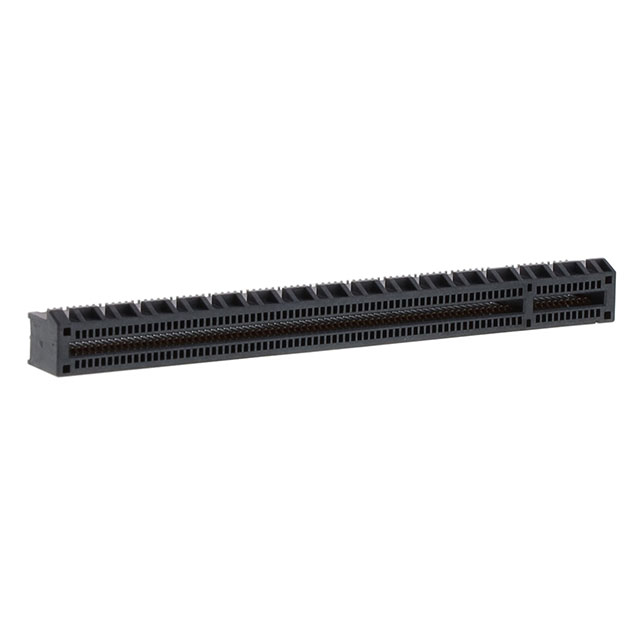

10146788-113M0LF

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 164POS 0.039

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN PCI EXP FMALE 164POS 0.039

Technical Specifications

Parameters and characteristics for this part

Specification	10146788-113M0LF

Card Type	PCI Express™
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Pick and Place, Board Guide, Locking Ramp
Gender	Female
Mounting Type	Surface Mount
Number of Positions	164
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Dual
Termination	Solder

Part	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Material	Termination	Termination Rows	Card Thickness	Card Thickness	Gender	Card Type	Mounting Type	Read Out	Color	Number of Positions	Contact Finish	Features
Amphenol ICC (FCI) 10146788-113Q0LF	82	85 °C	-55 °C	2	0.76 Ám	30 Áin	0.039 in	1 mm	Copper Alloy	Solder	2	0.062 in	1.57 mm	Female	PCI Express™	Surface Mount Through Hole	Dual	Black	164	Gold
Amphenol ICC (FCI) 10146788-113M0LF		105 ░C	-55 °C	2	0.76 Ám	30 Áin	0.039 in	1 mm	Copper Alloy	Solder				Female	PCI Express™	Surface Mount	Dual		164	Gold	Board Guide Locking Ramp Pick and Place

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

164 Position Female Connector PCI Express™ Gold 0.039" (1.00mm)
