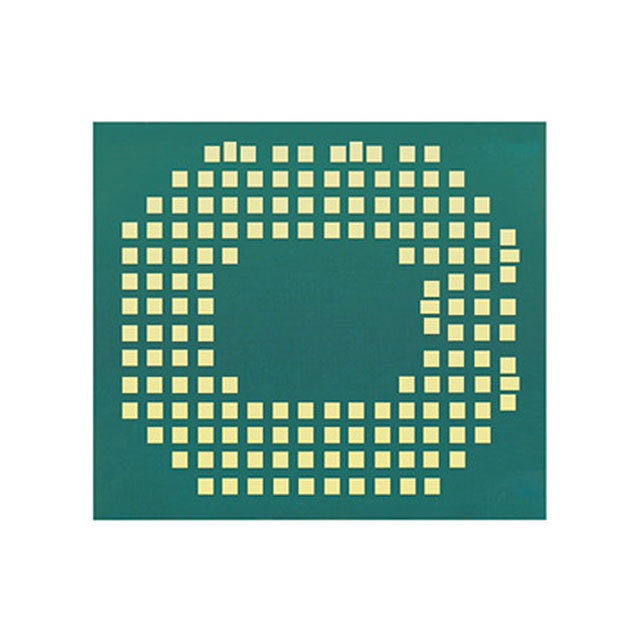

PLS8-J REL.3.0

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Telit Cinterion

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLS8-J REL.3.0	PLS8 Series

Antenna Type	Antenna Not Included	Antenna Not Included
Data Rate	100 Mbps	100 Mbps
Frequency	1800 MHz, 2100 MHz, 800 MHz	800 - 2100 MHz
Frequency	-	AWS1
Modulation	64-QAM	64-QAM
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	203 °F	203 °F
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	156-LGA Module	156-LGA Module
Power - Output	33 dBm	33 dBm
Protocol	UMTS, GPS, HSDPA, HSUPA, GPRS, GSM, LTE, EDGE, GLONASS, WCDMA	UMTS, GPS, HSDPA, HSUPA, GPRS, GSM, LTE, EDGE, GLONASS, WCDMA
RF Family/Standard	Cellular	Cellular
Serial Interfaces	USB, I2C, I2S, UART, ADC, GPIO, SPI, PCM	USB, I2C, I2S, UART, ADC, GPIO, SPI, PCM
Utilized IC / Part	Qualcomm MDM9215	Qualcomm MDM9215
Voltage - Supply [Max]	4.2 V	4.2 V
Voltage - Supply [Min]	3.3 V	3.3 V

RF TXRX MODULE CELL SMD

Part	Utilized IC / Part	RF Family/Standard	Modulation	Serial Interfaces	Protocol	Package / Case	Mounting Type	Antenna Type	Operating Temperature [Min]	Operating Temperature [Max]	Power - Output	Data Rate	Frequency	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]
Telit Cinterion PLS8-US REL.4	Qualcomm MDM9215	Cellular	64-QAM	ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB	EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSUPA, LTE, UMTS, WCDMA	156-LGA Module	Surface Mount	Antenna Not Included	-40 °C	203 °F	33 dBm	100 Mbps	AWS1	850 MHz, 900 MHz, 1800 MHz, 1900 MHz	4.2 V	3.3 V
Telit Cinterion PLS8-J REL.3.0	Qualcomm MDM9215	Cellular	64-QAM	ADC, GPIO, I2C, I2S, PCM, SPI, UART, USB	EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSUPA, LTE, UMTS, WCDMA	156-LGA Module	Surface Mount	Antenna Not Included	-40 °C	203 °F	33 dBm	100 Mbps		800 MHz, 1800 MHz, 2100 MHz	4.2 V	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cellular EDGE, GLONASS, GPRS, GPS, GSM, HSDPA, HSUPA, LTE, UMTS, WCDMA Transceiver Module 800MHz, 1.8GHz, 2.1GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
