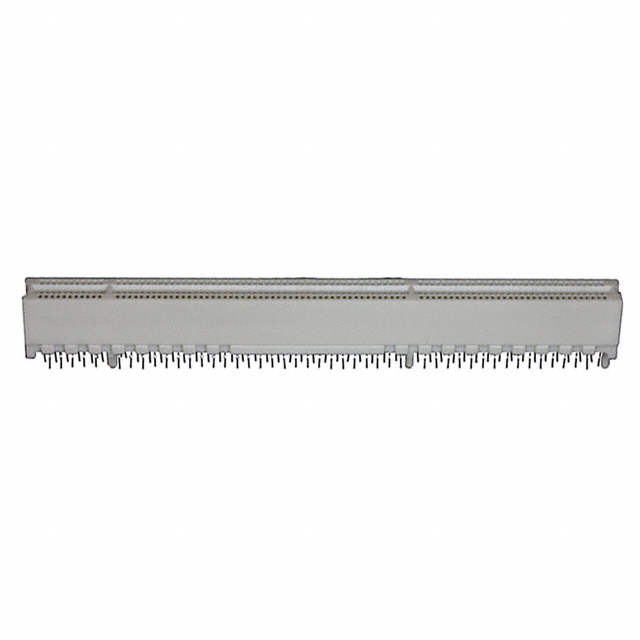

145165-4

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 184P 0.050

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PCI CARDEDGE FML 184P 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	145165-4

Card Thickness	0.062 in
Card Thickness	1.57 mm
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Through Hole
Number of Positions	184
Number of Positions/Bay/Row [custom]	32
Number of Positions/Bay/Row [custom]	11
Number of Positions/Bay/Row [custom]	49
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder, Staggered

Part	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Gender	Number of Rows	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Color	Number of Positions	Material - Insulation	Card Thickness	Card Thickness
TE Connectivity Raychem Cable Protection 145165-4	32	11	49	Phosphor Bronze	Board Guide	0.76 Ám	30 Áin	Dual	Solder Staggered	Female	2	Through Hole	Gold	0.05 in	1.27 mm	Natural	184	Thermoplastic	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

184 Position Female Connector PCI 3.3V 64 Bit Gold 0.050" (1.27mm) Natural
