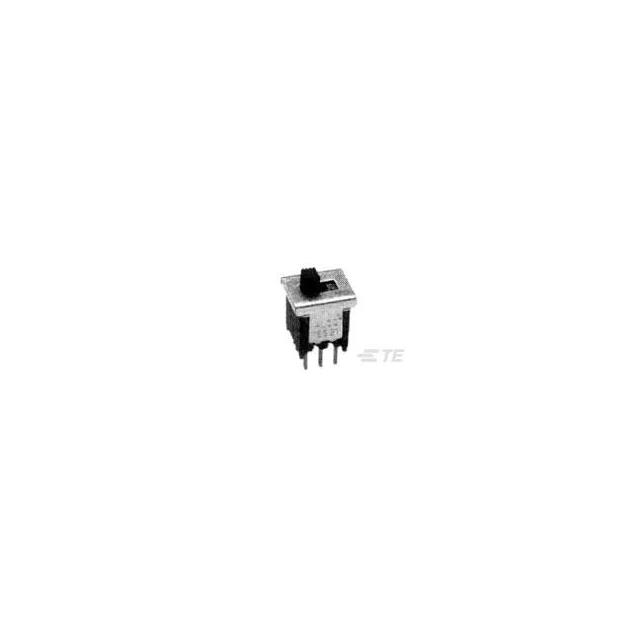

1-1437579-9

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH SLIDE DPDT 0.4VA 20V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch DPDT Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1-1437579-9	1437579 Series

Actuator Length [x]	2.8 mm	2.79 - 2.8 mm
Actuator Material	Polyester	Polyester, Polybutylene Terephthalate (PBT)
Actuator Type	Standard	Standard
Circuit	DPDT	DPDT, SPDT x 2
Contact Finish	Gold	Gold
Contact Material	Copper	Copper
Contact Timing	Non-Shorting	Non-Shorting
Current Rating (Amps)	0.4 VA	0.4 VA
Electrical Life	60000 Cycles	60000 Cycles
Features	-	Epoxy Sealed Terminals
Mechanical Life	60000 Cycles	60000 Cycles
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Operating Force [Max]	600 gf	600 gf
Operating Force [Min]	150 gf	150 gf
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Switch Function	On-On	On-On
Switch Travel	3.05 mm	3.05 mm
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 V
Voltage Rating - DC	20 V	20 V

SWITCH SLIDE DPDT 0.4VA 20V

Part	Switch Function	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Mounting Type	Contact Material	Operating Force [Max]	Operating Force [Min]	Actuator Type	Switch Travel	Mechanical Life	Voltage Rating - DC	Actuator Length [x]	Contact Finish	Contact Timing	Electrical Life	Circuit	Current Rating (Amps)	Actuator Material	Features
TE Connectivity ALCOSWITCH Switches 1-1437579-9	On-On	PC Pin	-20 C	80 C	20 V	Through Hole	Copper	600 gf	150 gf	Standard	3.05 mm	60000 Cycles	20 V	2.8 mm	Gold	Non-Shorting	60000 Cycles	DPDT	0.4 VA	Polyester
TE Connectivity ALCOSWITCH Switches 1437579-5	On-On	PC Pin	-20 C	80 C	20 V	Through Hole	Copper	600 gf	150 gf	Standard	3.05 mm	60000 Cycles	20 V	2.79 mm	Gold	Non-Shorting	60000 Cycles	SPDT x 2	0.4 VA	Polybutylene Terephthalate (PBT)	Epoxy Sealed Terminals
TE Connectivity ALCOSWITCH Switches 1437579-6	On-On	PC Pin	-20 C	80 C	20 V	Through Hole, Right Angle	Copper	600 gf	150 gf	Standard	3.05 mm	60000 Cycles	20 V	2.79 mm	Gold	Non-Shorting	60000 Cycles	SPDT x 2	0.4 VA	Polyester	Epoxy Sealed Terminals
