2-1419158-2

Active

TE Connectivity AMP Connectors

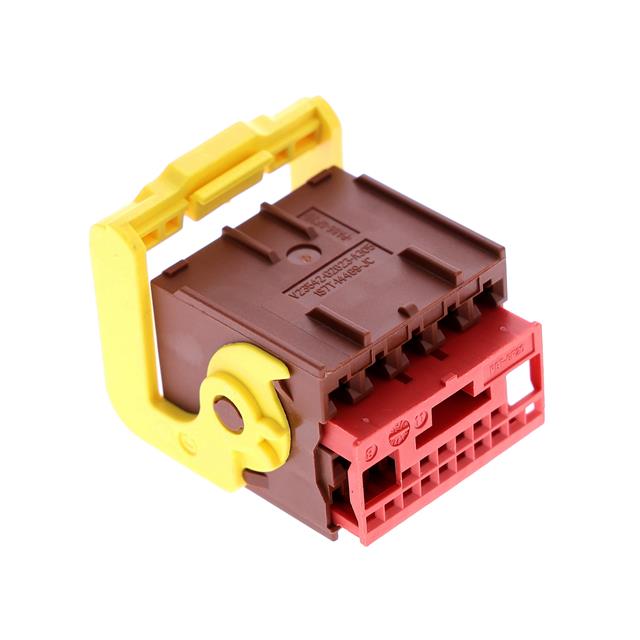

CONN RCPT HSG 23POS

Deep-Dive with AI

Search across all available documentation for this part.

2-1419158-2

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 23POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 2.27
		770	$ 1.39

Description

General part information

1419158 Series

23 Rectangular Connectors - Housings Receptacle Blue

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1419158-2	1419158 Series

	-	-
Color	Blue	Black, Gray, Blue
Connector Type	Receptacle	Receptacle, Plug
Contact Finish	-	Gold, Tin
Contact Finish Thickness	-	31.5 µin
Contact Finish Thickness	-	0.8 µm
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Fastening Type	-	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled, Nylon, Polyamide (PA), Glass Filled, Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	23	6 - 23
Number of Rows	-	1 - 2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pin or Socket	-	Pin
Pitch	-	2.54 mm
Pitch	-	0.1 in
Row Spacing	-	0.1 in
Row Spacing	-	2.54 mm
Wire Gauge	-	20 - 24 AWG
Wire Gauge	-	17.5 - 22 AWG

1419158 Series

CONN RCPT HSG 6POS

Part	Number of Positions	Note	Insulation Material	Contact Termination	Contact Type	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Rows	Fastening Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Pin or Socket	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 1419158-5	6	Contacts Not Included	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	1
TE Connectivity AMP Connectors 2-1419158-8	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Male Pin	Plug	Free Hanging (In-Line)	100 °C	-40 °C	Black	2	Locking Ramp
TE Connectivity AMP Connectors 1419158-1	6	Contacts Not Included	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)			Black	1
TE Connectivity AMP Connectors 1-1419158-7	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	2
TE Connectivity AMP Connectors 3-1419158-1				Crimp									31.5 µin	0.8 µm	Gold	24 AWG	22 AWG	Pin
TE Connectivity AMP Connectors 1-1419158-4	10	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Black	2								0.1 in	2.54 mm	2.54 mm	0.1 in
TE Connectivity AMP Connectors 2-1419158-7	22 positions	Contacts Not Included	Glass Filled, Nylon, Polyamide (PA)	Crimp	Male Pin	Plug	Free Hanging (In-Line)	100 °C	-40 °C	Black	2	Locking Ramp
TE Connectivity AMP Connectors 1-1419158-0
TE Connectivity AMP Connectors 1-1419158-9	23	Contacts Not Included	Polyamide (PA66), Nylon 6/6, Glass Filled	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	100 °C	-40 °C	Gray
TE Connectivity AMP Connectors 2-1419158-5				Crimp											Tin	20 AWG	17.5 AWG	Pin
