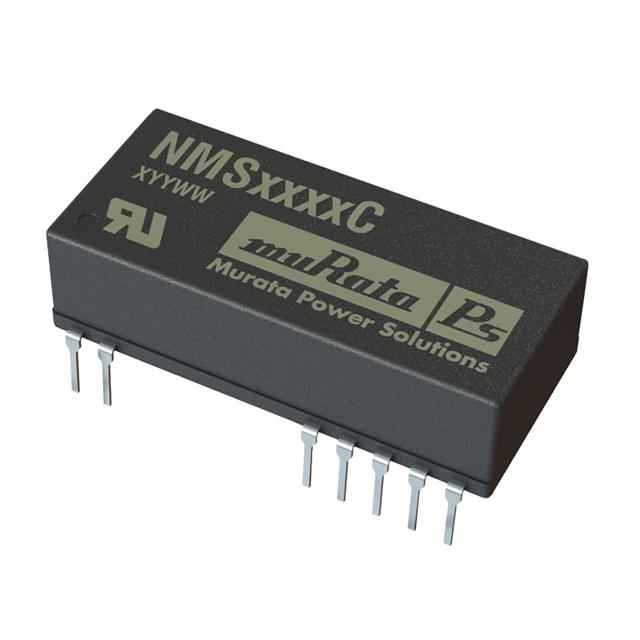

NMS1205C
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 2 W, 2 OUTPUT, 5 V, 200 MA
Deep-Dive with AI
Search across all available documentation for this part.
NMS1205C
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 2 W, 2 OUTPUT, 5 V, 200 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NMS1205C | NMS12 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 83 mA |
| Current - Output (Max) | - | 67 - 83 mA |
| Current - Output (Max) | - | 67 mA |
| Efficiency | - | 78 % |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 2 |
| Operating Temperature | - | 70 °C |
| Operating Temperature | - | 0 °C |
| Package / Case | - | 14 - 15.24 mm |
| Package / Case | - | 24-DIP Module |
| Power (Watts) | - | 2 W |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 13.2 V |
| Voltage - Input (Min) | - | 10.8 V |
| Voltage - Isolation | - | 6000 V |
| Voltage - Output 1 | - | 5 - 15 V |
| Voltage - Output 2 | - | -15 - -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NMS12 Series
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 1:1, 2 W, 2 OUTPUT, 5 V, 200 MA
| Part | Package / Case | Package / Case | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 2 | Voltage - Input (Min) [Min] | Current - Output (Max) | Current - Output (Max) | Voltage - Isolation | Power (Watts) | Number of Outputs | Applications | Type | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NMS1205C | ||||||||||||||||||
Murata Power Solutions Inc. NMS1212C | 14 Leads, 15.24 mm | 24-DIP Module | 12 V | 70 °C | 0 °C | -12 V | 10.8 V | 83 mA | 83 mA | 6000 V | 2 W | 2 | ITE (Commercial) | Isolated Module | Through Hole | 13.2 V | ||
Murata Power Solutions Inc. NMS1205C | 14 Leads, 15.24 mm | 24-DIP Module | 5 V | 70 °C | 0 °C | -5 V | 10.8 V | 6000 V | 2 W | 2 | ITE (Commercial) | Isolated Module | Through Hole | 13.2 V | 78 % | |||
Murata Power Solutions Inc. NMS1215C | 14 Leads, 15.24 mm | 24-DIP Module | 15 V | 70 °C | 0 °C | -15 V | 10.8 V | 67 mA | 6000 V | 2 W | 2 | ITE (Commercial) | Isolated Module | Through Hole | 13.2 V | 67 mA | ||
Murata Power Solutions Inc. NMS1205C |
Description
General part information
NMS12 Series
The NMS1205C is a 2-output 2W board-mount isolated DC/DC Converter ideal for all telecom and safety applications where approved isolation is required. The low profile device allows mounting in rack systems without risk of touching other boards. The output configuration allows all of the rated power to be drawn from a single pin provided the total load does not exceed 2W. The device features low noise and low isolation capacitance suitable for applications in high noise environments, heavy electrical machine interface.
