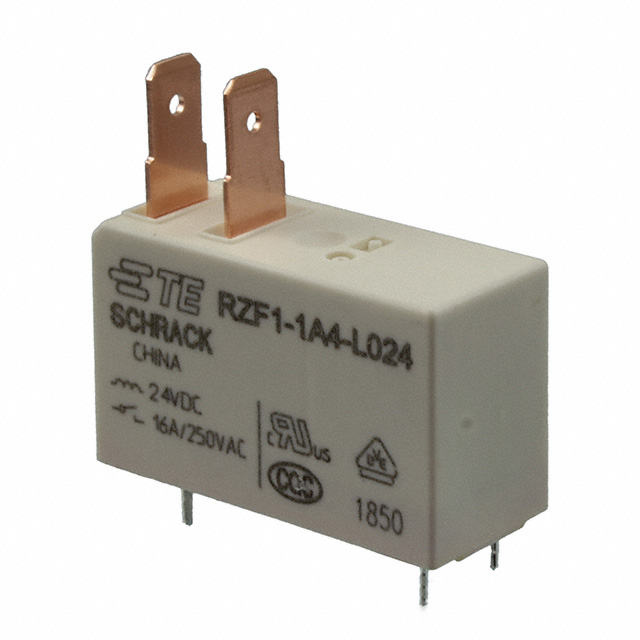

RZF1-1A4-L024

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRZF Series Power Relay Flyer Definition Relay Spec Sheet

RZF1-1A4-L024

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 24V

Deep-Dive with AI

DocumentsRZF Series Power Relay Flyer Definition Relay Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RZF1-1A4-L024

Approval Agency	CQC, VDE, cURus
Coil Current	22.1 mA
Coil Insulation	Class F
Coil Resistance	1.09 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	16 A
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	6 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage [Max]	400 VAC
Termination Style	4.7 mm, 0.187 in
Termination Style	Quick Connect, PC Pin

RZF1-1A4 Series

Part	Contact Material	Coil Voltage	Contact Rating (Current)	Release Time	Coil Current	Relay Type	Contact Form	Seal Rating	Load - Max Switching	Approval Agency	Coil Resistance	Must Release Voltage	Operate Time	Switching Voltage [Max]	Coil Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Termination Style	Coil Type	Mounting Type	Must Operate Voltage
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L009	Silver Nickel (AgNi)	9 VDC	16 A	6 ms	58.9 mA	General Purpose	SPST-NO (1 Form A)	Sealed - Flux Protection	6400 VA	CQC cURus VDE	153 Ohms	0.9 VDC	8 ms	400 VAC	Class F	85 °C	-40 °C	0.187 in 4.7 mm	PC Pin Quick Connect	Non Latching	Through Hole	6.3 VDC
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L048	Silver Nickel (AgNi)	48 VDC	16 A	6 ms	11 mA	General Purpose	SPST-NO (1 Form A)	Sealed - Flux Protection	6400 VA	CQC cURus VDE	4.35 kOhms	4.8 VDC	8 ms	400 VAC	Class F	85 °C	-40 °C	0.187 in 4.7 mm	PC Pin Quick Connect	Non Latching	Through Hole	33.6 VDC
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L012	Silver Nickel (AgNi)	12 VDC	16 A	6 ms	44.2 mA	General Purpose	SPST-NO (1 Form A)	Sealed - Flux Protection	6400 VA	CQC cURus VDE	272 Ohms	1.2 VDC	8 ms	400 VAC	Class F	85 °C	-40 °C	0.187 in 4.7 mm	PC Pin Quick Connect	Non Latching	Through Hole	8.4 VDC
TE Connectivity Potter & Brumfield Relays RZF1-1A4-L024	Silver Nickel (AgNi)	24 VDC	16 A	6 ms	22.1 mA	General Purpose	SPST-NO (1 Form A)	Sealed - Flux Protection	6400 VA	CQC cURus VDE	1.09 kOhms	2.4 VDC	8 ms	400 VAC	Class F	85 °C	-40 °C	0.187 in 4.7 mm	PC Pin Quick Connect	Non Latching	Through Hole	16.8 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RZF1-1A4 Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole

Documents

Technical documentation and resources

RZF Series Power Relay Flyer

Datasheet

Definition Relay Spec Sheet

Datasheet
