Technical Specifications
Parameters and characteristics for this part
| Specification | 658AFS 000500 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Low Smoke Poly-Vinyl Chloride (LSPVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30, 26 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.42 in |
| Jacket (Insulation) Diameter [diameter] | 10.67 mm |
| Length [x] | 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 16 |
| Ratings | UL Style CMP |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 22 AWG, 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 1.47 | |
Description
General part information
658AFS Series

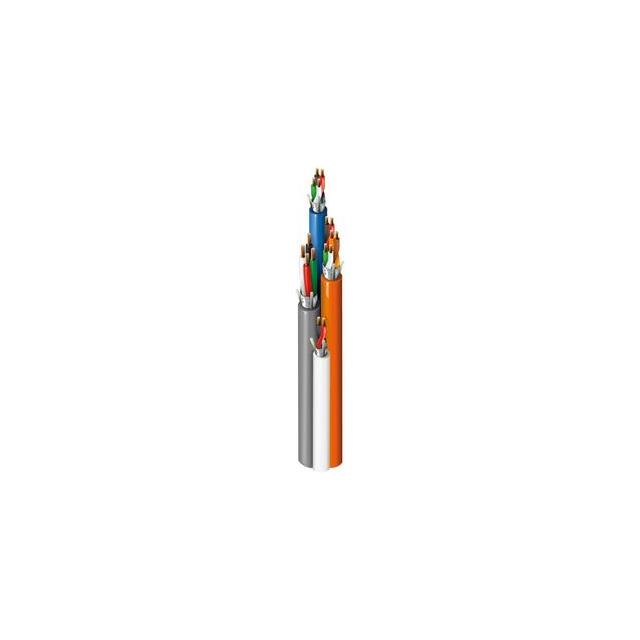

16 (3 Twisted Pairs + 10) Conductor Multi-Pair Cable 18 AWG, 22 AWG Foil 500.0' (152.4m)
