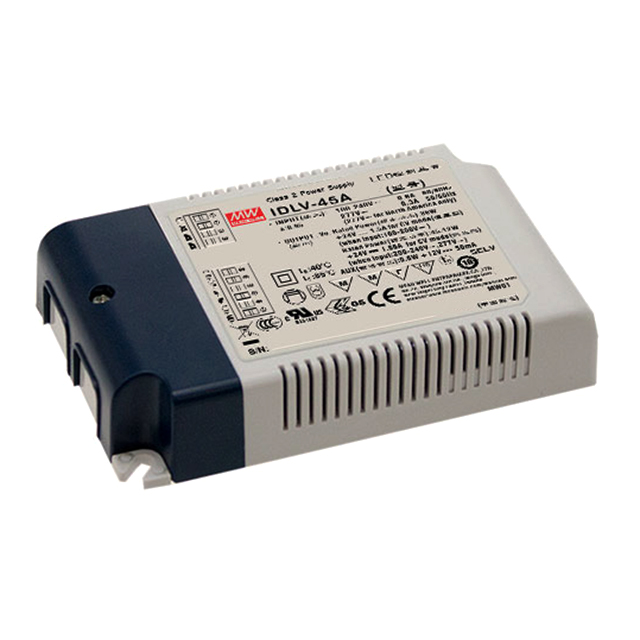

IDLV-45A-48
ObsoleteMEAN WELL USA Inc.
LED DRIVER CV AC/DC 48V 940MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IDLV-45A-48
ObsoleteMEAN WELL USA Inc.
LED DRIVER CV AC/DC 48V 940MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IDLV-45A-48 |
|---|---|
| Approval Agency | cURus, CE, ENEC, CB, CCC |
| Current - Output (Max) [Max] | 940 mA |
| Dimming | Analog, PWM |
| Efficiency | 88 % |
| Features | OCP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 45 W |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [x] | 4.72 in |
| Size / Dimension [y] | 75 mm |
| Size / Dimension [y] | 2.95 in |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.98 in |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output | 48 V |
IDLV-45 Series
| Part | Mounting Type | Dimming | Approval Agency | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Isolation | Voltage - Output | Voltage - Input (Min) [Min] | Features | Termination Style | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Number of Outputs | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Chassis Mount | Analog PWM | CB CCC CE cURus ENEC | AC DC Converter | 85 °C | -20 C | Constant Voltage | 3750 V | 36 V | 90 VAC | OCP SCP | Terminal Block | 45 W | 25 mm | 120 mm | 0.98 in | 75 mm | 2.95 in | 4.72 in | 88 % | 1 | 1.25 A | 295 VAC |
MEAN WELL USA Inc. | Chassis Mount | Analog PWM | CB CCC CE cURus ENEC | AC DC Converter | 85 °C | -20 C | Constant Voltage | 3750 V | 48 V | 90 VAC | OCP SCP | Terminal Block | 45 W | 25 mm | 120 mm | 0.98 in | 75 mm | 2.95 in | 4.72 in | 88 % | 1 | 940 mA | 295 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IDLV-45 Series
940mA 48V Constant Voltage LED Driver AC DC Converter Topology 1 Output
