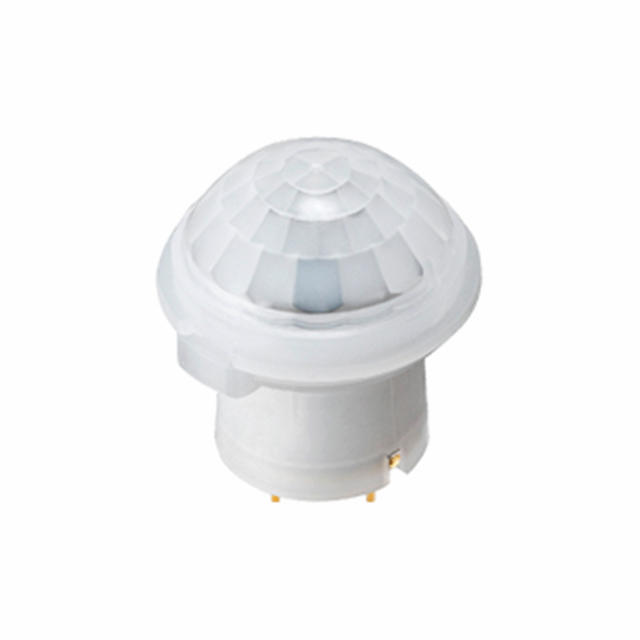

EKMC7609111K

Active

Panasonic Electric Works

SENSOR PIR 170UA DIGITAL WHITE

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 170UA DIGITAL WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	EKMC7609111K

Features	Ultra Slight Motion Lens, White
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	144 in, 12 ft, 3.5 m
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	3 V

Part	Features	Sensing Distance	Trigger Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Package / Case
Panasonic Electric Works EKMC7609111K	Ultra Slight Motion Lens White	3.5 m 12 ft 144 in	Internal	-20 C	60 °C	6 V	3 V	Motion PIR (Passive Infrared) Pyroelectric	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 10.29

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 144" (3.5m) 12' Ultra Slight Motion Lens, White Module
