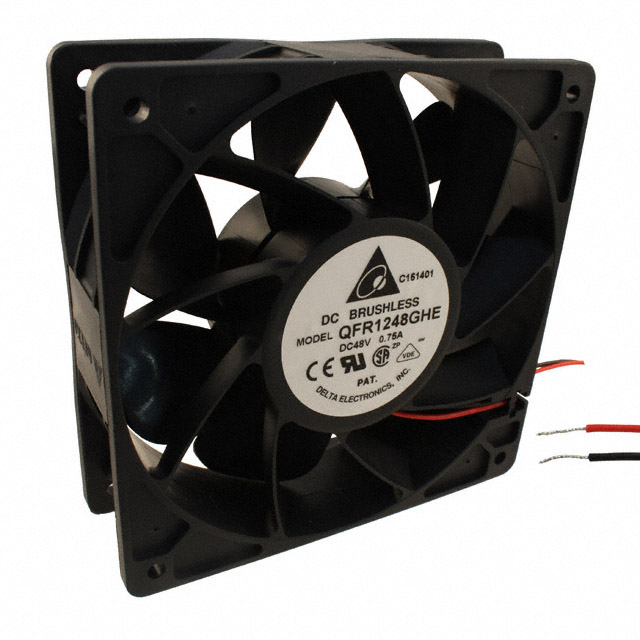

QFR1248GHE

Obsolete

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QFR1248GHE	QFR1248 Series

Air Flow	5.89 m³/min	5.89 m³/min
Air Flow	210.4 CFM	210.4 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA
Bearing Type	Ball	Ball
Current Rating (Amps)	0.5 A	0.5 A
Fan Type	Tubeaxial	Tubeaxial
Features	-	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs	50000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	64 dB(A)	64 dB(A)
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	24 W	24 W
RPM	6000 RPM	6000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	291.4 Pa	291.4 Pa
Static Pressure	1.17 in H2O	1.17 in H2O
Termination	2 Wire Leads	2 Wire Leads, 4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	52.8	52.8
Voltage Range [Min]	33	33
Weight	330.22 g	330.22 g
Weight	0.728 lb	0.728 lb
Width [y]	38 mm	38 mm

DC FAN AXIAL BALL BEARING 48V 33V TO 52.8V 210.38CFM 64DB 120 X 120 X 38MM

Part	Static Pressure	Static Pressure	Air Flow	Air Flow	Termination	Material - Blade	Weight	Weight	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Noise	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Width [y]	RPM	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated [custom]	Approval Agency	Bearing Type	Power (Watts)	Features
Delta Electronics QFR1248GHE	291.4 Pa	1.17 in H2O	5.89 m³/min	210.4 CFM	2 Wire Leads	Plastic	330.22 g	0.728 lb	Plastic	33	52.8	Tubeaxial	50000 Hrs	0.5 A	64 dB(A)	-10 °C	-10 °C	60 °C	60 °C	38 mm	6000 RPM	120 mm	120 mm	48 VDC	CE, CSA, UL, VDE	Ball	24 W
Delta Electronics QFR1248GHE-SP01	291.4 Pa	1.17 in H2O	5.89 m³/min	210.4 CFM	4 Wire Leads	Plastic	330.22 g	0.728 lb	Plastic	33	52.8	Tubeaxial	50000 Hrs	0.5 A	64 dB(A)	-10 °C	-10 °C	60 °C	60 °C	38 mm	6000 RPM	120 mm	120 mm	48 VDC	CE, CSA, UL, VDE	Ball	24 W	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 210.4 CFM (5.89m³/min) 2 Wire Leads
