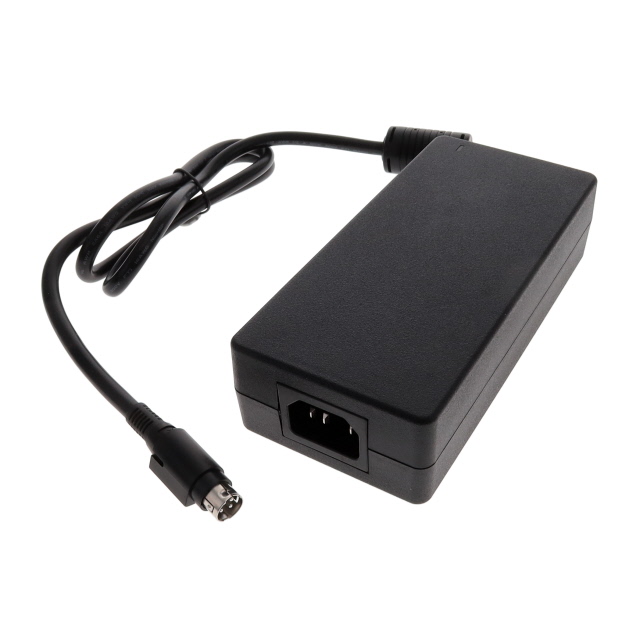

TR160MA120-1446E471 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 12V 150W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	TR160MA120-1446E471 VI

Applications	Household Appliances, Medical
Approval Agency	UL, TUV, CE, FCC, cURus
Cord Length	0.95 m
Cord Length	37.4 "
Current - Output (Max) [Max]	12.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Connector	4 Pin
Output Connector	Power DIN
Power (Watts)	150 W
Region Utilized	International
Size / Dimension [x]	150 mm
Size / Dimension [x]	5.91 "
Size / Dimension [y]	2.76 in
Size / Dimension [y]	70 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	60335-1, 60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	12 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector	Efficiency	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Region Utilized	Form	Current - Output (Max) [Max]	Cord Length	Cord Length	Output Connector	Output Connector [diameter]	Output Connector [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Input Type	No Load Power Consumption [Max]	Voltage - Output	Polarization	Power (Watts)	Standard Number	Output Connector
Cincon Electronics Co. LTD TR160MA240-01E12 VI	-20 C	70 °C	IEC 320-C14	CoC Tier 2 Level VI	CE cURus FCC TUV UL	264 VAC	80 VAC	Household Appliances Medical	International	Desktop (Class I)	6.66 A	1.22 m	48 in	Barrel Plug	2.1 mm 5.5 mm	12 mm	150 mm	2.76 in	38 mm	1.5 "	5.91 "	70 mm	Cord	150 mW	24 V	Positive Center	160 W	60335-1 60601-1
Cincon Electronics Co. LTD TR160MA120-1446E471 VI	-20 C	70 °C	IEC 320-C14	CoC Tier 2 Level VI	CE cURus FCC TUV UL	264 VAC	80 VAC	Household Appliances Medical	International	Desktop (Class I)	12.5 A	0.95 m	37.4 "	Power DIN			150 mm	2.76 in	38 mm	1.5 "	5.91 "	70 mm	Cord	150 mW	12 V		150 W	60335-1 60601-1	4 Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 150 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
