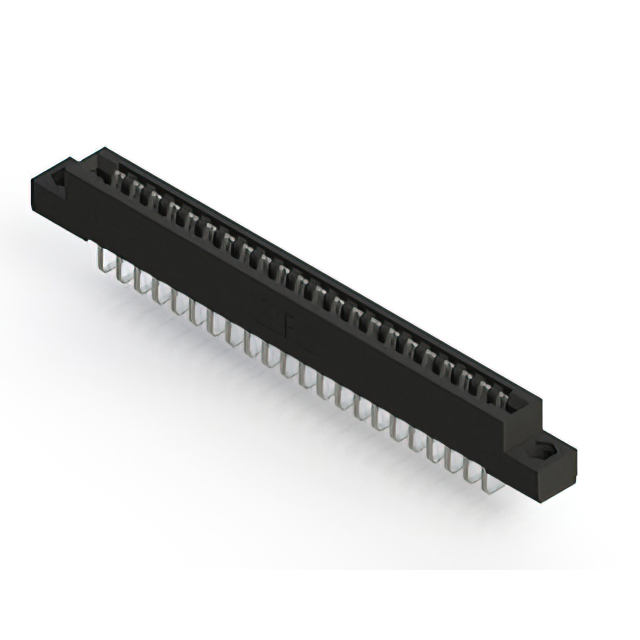

357-022-459-104

Active

EDAC Inc.

CONN EDGE SGL FML 22POS 0.156

357-022-459-104

Active

EDAC Inc.

CONN EDGE SGL FML 22POS 0.156

Description Specifications Series Pricing CAD Documents

Description

General part information

357-022 Series

22 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	357-022-459-104

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Unthreaded, Top Opening, Flush Mount
Flange Feature Diameter	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	22
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1 rows

357-022 Series

...

Part	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Color	Contact Material	Gender	Flange Feature	Card Type	Contact Finish Thickness	Termination	Read Out	Mounting Type	Features	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Pitch	Number of Rows	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 357-022-558-178	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	10 Ąin	Solder	Single	Right Angle Through Hole	Card Guides	0.054 in	0.07 in	Gold	0.156 in	1	Polyester Thermoplastic	1 rows
EDAC Inc. 357-022-445-101	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female		Non Specified Single Edge		Wire Wrap	Single	Through Hole		0.054 in	0.07 in	Tin	0.156 in	1	Polyester Thermoplastic	1 rows
EDAC Inc. 357-022-559-112	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	Flush Mount Side Opening Unthreaded	Non Specified Single Edge	10 Ąin	Solder	Single	Right Angle Through Hole		0.054 in	0.07 in	Gold	0.156 in	1	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 357-022-455-201	11 22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female		Dual Edge Non Specified		Solder Eyelet(s)	Dual	Board Edge Straddle Mount	Card Extender	0.054 in	0.07 in	Tin	0.156 in	2	Polyester Thermoplastic	2 rows
EDAC Inc. 357-022-520-202	11 22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified	10 Ąin	Solder	Dual	Through Hole		0.054 in	0.07 in	Gold	0.156 in	2	Polyester Thermoplastic	2 rows	0.128 in
EDAC Inc. 357-022-527-158	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	10 Ąin	Solder	Single	Through Hole	Card Guides	0.054 in	0.07 in	Gold	0.156 in	1	Polyester Thermoplastic	1 rows
EDAC Inc. 357-022-459-104	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	Non Specified Single Edge		Solder	Single	Right Angle Through Hole		0.054 in	0.07 in	Tin	0.156 in	1	Polyester Thermoplastic	1 rows	0.156 in
EDAC Inc. 357-022-401-102	22 44	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	Flush Mount Top Opening Unthreaded	Dual Edge Non Specified		Solder Eyelet(s)	Dual	Through Hole		0.054 in	0.07 in	Tin	0.156 in	2	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 357-022-531-112	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	Flush Mount Side Opening Unthreaded	Non Specified Single Edge	10 Ąin	Solder	Single	Through Hole		0.054 in	0.07 in	Gold	0.156 in	1	Polyester Thermoplastic	1 rows	0.128 in
EDAC Inc. 357-022-531-168	22	-40 °C	105 °C	Semi Bellows	Black	Copper Alloy	Female	4-40 Flush Mount Threaded Insert Top Opening	Non Specified Single Edge	10 Ąin	Solder	Single	Through Hole	Card Guides	0.054 in	0.07 in	Gold	0.156 in	1	Polyester Thermoplastic	1 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

357-022-459-104 | Datasheet
