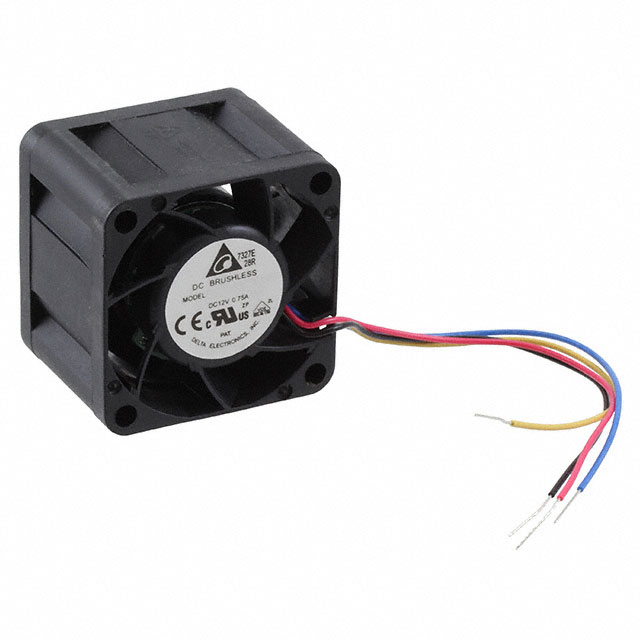

FFB03612EHNYCL

Active

Delta Electronics

FAN AXIAL 36X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 36X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFB03612EHNYCL

Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	0.63 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58 dB(A)
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	7.56 W
RPM	19000 RPM
Size / Dimension [x]	36 mm
Size / Dimension [z]	36 mm
Static Pressure	423.5 Pa
Static Pressure	1.7 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.071 lb
Weight	32.21 g
Width [y]	28 mm

Part	Bearing Type	Fan Type	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	RPM	Noise	Material - Frame	Voltage - Rated	Lifetime @ Temp.	Width [y]	Features	Material - Blade	Termination	Current Rating (Amps)	Weight	Weight	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)
Delta Electronics FFB03612EHNYCL	Ball	Tubeaxial	423.5 Pa	1.7 in H2O	13.2 VDC	10.8 VDC	19000 RPM	58 dB(A)	Plastic	12 VDC	70000 Hrs	28 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	4 Wire Leads	0.63 A	0.071 lb	32.21 g	CE cURus VDE	80 C	-10 °C	-10 °C	80 °C	36 mm	36 mm	7.56 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 36mm L x 36mm H Ball 21.0 CFM (0.588m³/min) 4 Wire Leads
