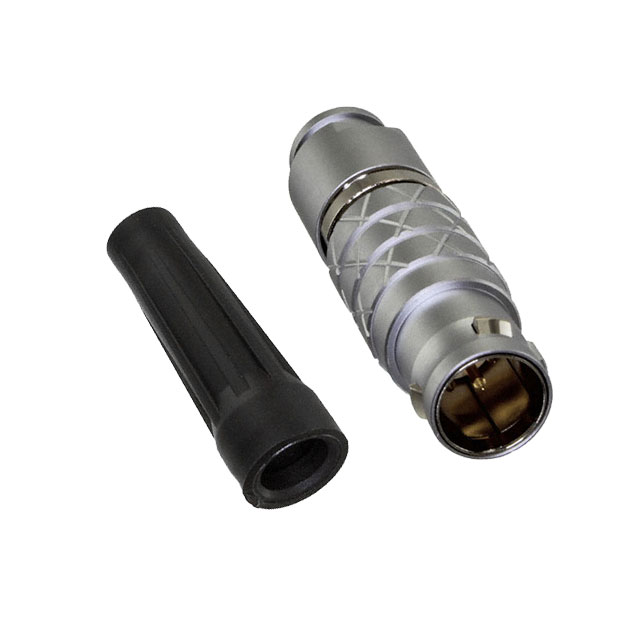

FLBD-05FGMS-GCP-214

Active

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLBD-05FGMS-GCP-214

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Backshell Material, Plating	Chrome, Copper Alloy
Cable Opening [custom]	0.283 in, 0.244 in
Cable Opening [custom]	7.2 mm, 6.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	14 A
Fastening Type	Push-Pull
Features	Cable Clamp, Backshell
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	D-5
Shielding	Shielded
Voltage Rating	550 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell Material	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Connector Type	Current Rating (Amps)	Applications	Contact Material	Contact Finish - Mating	Orientation	Voltage Rating	Features	Ingress Protection	Primary Material	Backshell Material, Plating	Shielding	Insert Material	Shell Size - Insert	Color
Amphenol LTW FLBD-05FGMS-GCP-214	125 °C	-40 °C	Free Hanging (In-Line)	Copper Alloy	Push-Pull	0.244 in 0.283 in	6.2 mm 7.2 mm	Chrome	Male Pins Plug	14 A	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Copper Alloy	Gold	G	550 VDC	Backshell Cable Clamp	IP50	Metal	Chrome Copper Alloy	Shielded	Polyphenylene Sulfide (PPS)	D-5	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.84

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
