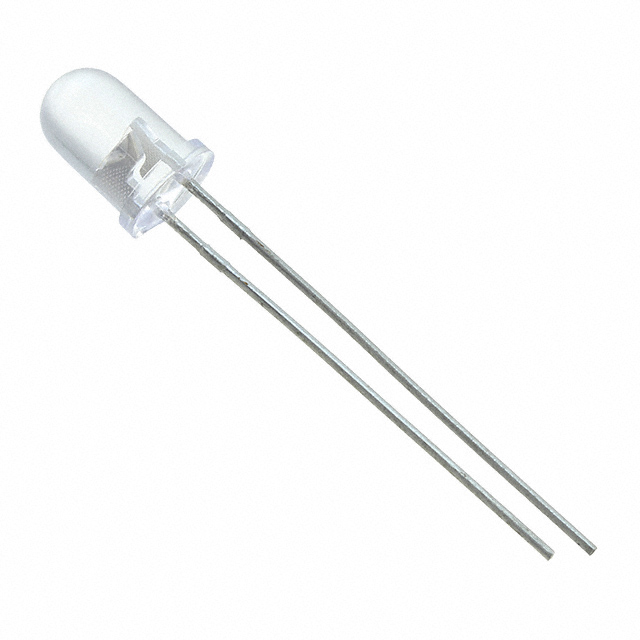

WP7143SURC/E

Active

Kingbright

LED RED CLEAR T-1 3/4 T/H

Search across all available documentation for this part.

Active

Kingbright

LED RED CLEAR T-1 3/4 T/H

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED CLEAR T-1 3/4 T/H

Part	Configuration	Lens Color	Millicandela Rating	Color	Mounting Type	Package / Case	Lens Style	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	Wavelength - Peak	Wavelength - Dominant	Lens Size	Lens Size	Current - Test	Viewing Angle	Supplier Device Package	Lens Transparency
Kingbright WP7143SURC/E	Standard	Colorless	1000 mcd	Red	Through Hole	Radial	Round with Domed Top	8.6 mm	1.9 V	5 mm	645 nm	630 nm	T-1 3/4	5 mm	20 mA	30 °	T-1 3/4	Clear
Kingbright WP7143SGC	Standard	Colorless	300 mcd	Green	Through Hole	Radial	Round with Domed Top	8.6 mm	2.2 V	5 mm	565 nm	568 nm	T-1 3/4	5 mm	20 mA	30 °	T-1 3/4	Clear
Kingbright WP7143SRC/D	Standard	Colorless	600 mcd	Red	Through Hole	Radial	Round with Domed Top	8.6 mm	1.85 V	5 mm	655 nm	640 nm	T-1 3/4	5 mm	20 mA	30 °	T-1 3/4	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 630nm LED Indication - Discrete 1.9V Radial

Technical documentation and resources
