SAN.M08.GLA.6GZ

Active

LEMO

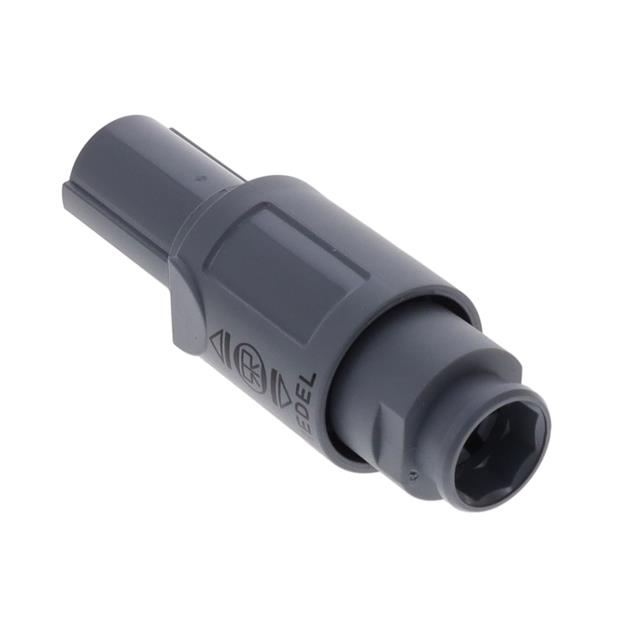

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAN.M08.GLA.6GZ

Active

LEMO

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.07
		10	$ 27.21
		25	$ 26.03
		50	$ 25.19
		100	$ 24.35
		250	$ 23.01

Description

General part information

SAN.M08 Series

8 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SAN.M08.GLA.6GZ	SAN.M08 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening	-	0.157 in
Cable Opening	-	0.205 in
Cable Opening	-	4 mm
Cable Opening	-	5.2 mm
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 6.5 mm
Color	Gray	Gray, White, Blue
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	5 A	5 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M08	M08
Shielding	Unshielded	Unshielded

SAN.M08 Series

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Orientation	Contact Finish - Mating	Backshell Material, Plating	Color	Fastening Type	Shell Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Features	Applications	Connector Type	Ingress Protection	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Mounting Type	Insert Material	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
LEMO SAN.M08.GLA.6GZ	N	Gold	Sulfone	Gray	Push-Pull	Sulfone	Unshielded	-50 °C	170 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Male Pins, Plug	IP50	5 A	8	M08	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Plastic
LEMO SAN.M08.GLA.5GZ	N	Gold	Sulfone	Gray	Push-Pull	Sulfone	Unshielded	-50 °C	170 °C			Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Male Pins, Plug	IP50	5 A	8	M08	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Plastic	0.157 in	0.205 in	4 mm	5.2 mm
LEMO SAN.M08.BLA.6BZ	N	Gold	Sulfone	White	Push-Pull	Sulfone	Unshielded	-50 °C	170 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Male Pins, Plug	IP50	5 A	8	M08	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Plastic
LEMO SAN.M08.GLA.6A	N	Gold	Sulfone	Blue, Gray	Push-Pull	Sulfone	Unshielded	-50 °C	170 °C	0.209 in, 0.256 in	5.3 mm, 6.5 mm	Backshell	Automotive, Industrial, Medical, Testing Equipment & Measurement	Male Pins, Plug	IP50	5 A	8	M08	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Plastic
