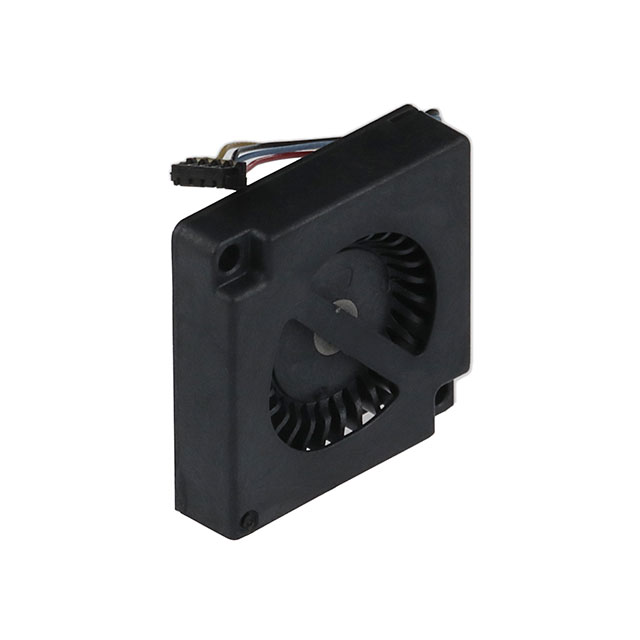

BSB0205HP-00EFG

Delta Electronics

FAN AXIAL 17X5.28MM 5VDC WIRE

Search across all available documentation for this part.

Delta Electronics

FAN AXIAL 17X5.28MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BSB0205HP-00EFG

Air Flow	0.57 CFM
Air Flow	0.016 m³/min
Approval Agency	cURus, TUV
Bearing Type	Sleeve
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	35.9 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.4 W
RPM	12000 RPM
Size / Dimension [x]	17 mm
Size / Dimension [y]	17 mm
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	4 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	2 V
Weight	1.81 g
Weight	0.004 lb
Width [y]	5.28 mm

Part	Features	Material - Frame	Voltage - Rated	Termination	Noise	Width [y]	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Bearing Type	Approval Agency	Lifetime @ Temp.	RPM	Weight	Weight	Power (Watts)	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]
Delta Electronics BSB0205HP-00EFG	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	5 V	4 Wire Leads	35.9 dB(A)	5.28 mm	Tubeaxial	0.4 in H2O	99.6 Pa	-10 °C	-10 °C	60 °C	60 °C	17 mm	17 mm	Plastic	Sleeve	cURus TUV	30000 Hrs	12000 RPM	1.81 g	0.004 lb	0.4 W	0.57 CFM	0.016 m³/min	5.5 V	2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 17mm L x 17mm H Sleeve 0.570 CFM (0.016m³/min) 4 Wire Leads
