PPPN282GFNP

Obsolete

Sullins Connector Solutions

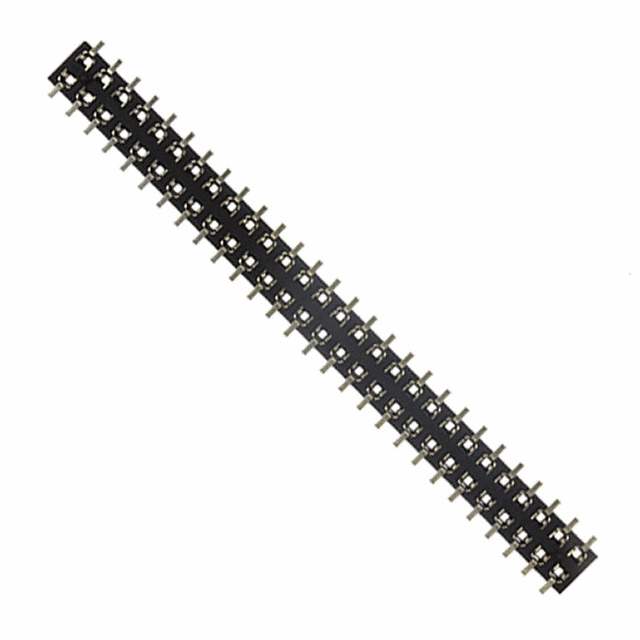

CONN HDR 56POS 0.079 GOLD SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 56POS 0.079 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPPN282GFNP

Connector Type	Header, Top or Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Number of Rows	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Post	Connector Type	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Fastening Type	Contact Type	Contact Shape	Termination	Features
Sullins Connector Solutions PPPN282GFNS	2	Flash	Polyester	Gold	Header Top or Bottom Entry	All	0.079 in	2 mm	Phosphor Bronze	Black	0.079 in	2 mm	Flash	Surface Mount	-40 °C	105 ░C	UL94 V-0	2 A	56	Gold	Push-Pull	Female Socket	Square	Solder
Sullins Connector Solutions PPPN282GFNP	2	Flash	Polyester	Gold	Header Top or Bottom Entry	All	0.079 in	2 mm	Phosphor Bronze	Black	0.079 in	2 mm	Flash	Surface Mount	-40 °C	105 ░C	UL94 V-0	2 A	56	Gold	Push-Pull	Female Socket	Square	Solder	Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

56 Position Header, Top or Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold
