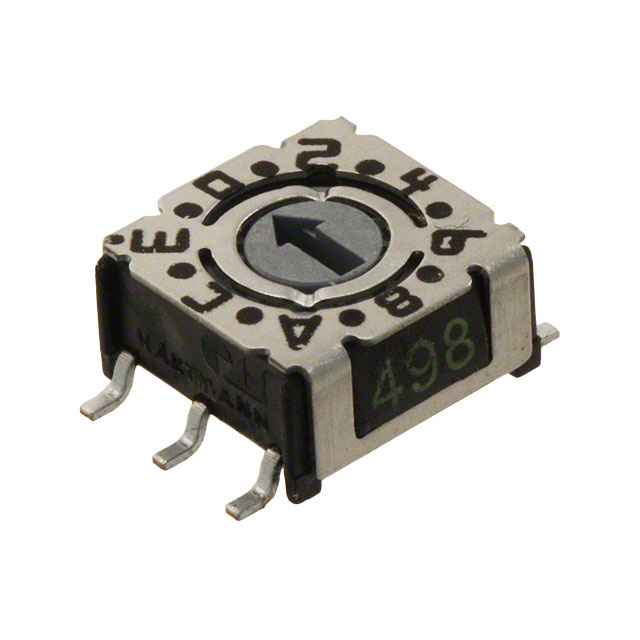

P36S103TR
ActiveAPEM
SWITCH ROTARY DIP HEX 0.1A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P36S103TR
ActiveAPEM
SWITCH ROTARY DIP HEX 0.1A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P36S103TR |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Body Material | Thermoplastic |
| Circuit | Hexadecimal |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 100 mA |
| Features | Sealed - Flux Protection |
| Height Above Board | 0.152 in |
| Height Above Board | 3.85 mm |
| Length [x] | 0.291 in |
| Length [x] | 7.4 mm |
| Mechanical Life | 10000 Steps |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1300 | $ 4.06 | |
Description
General part information
P36S103 Series
Dip Switch Hexadecimal 16 Position Surface Mount Rotary for Tool Actuator 100mA 24VDC
