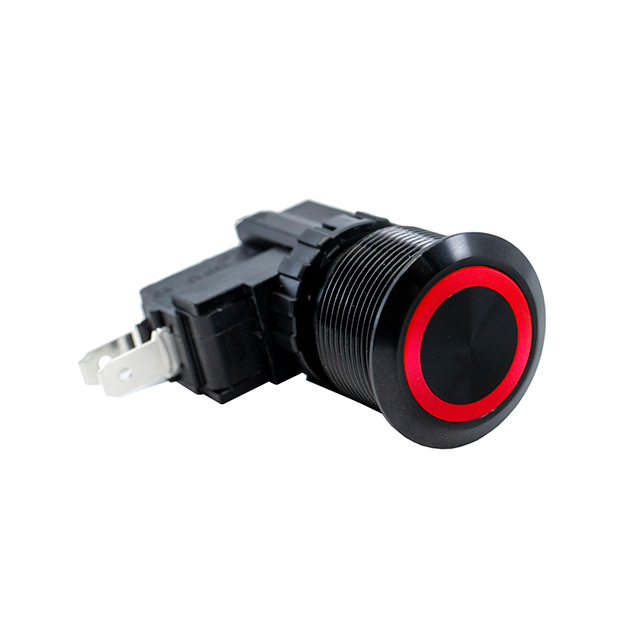

SAV7F1311311

Active

E-Switch

SWITCH PB SPDT 15A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPDT 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SAV7F1311311

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	3 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

Part	Illumination Voltage (Nominal)	Type	Color - Actuator/Cap	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Electrical Life	Actuator Type	Actuator Marking	Illumination Type, Color	Circuit	Current Rating (Amps)	Ingress Protection
E-Switch SAV7F1311311	3 VDC	Anti-Vandal Illuminated	Black	On-On	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	Panel Mount Front	22.2 mm	125 V	10000 Cycles	Button Flush Round	No Marking	LED Red	SPDT	15 A	IP67 - Dust Tight Waterproof
E-Switch SAV7F1BSS331	3 VDC	Anti-Vandal Illuminated	Silver	On-Mom	-25 °C	85 °C	Quick Connect - 0.187" (4.7mm)	Panel Mount Front	22.2 mm	125 V	10000 Cycles	Button Flush Round	No Marking	Green LED	SPDT	15 A	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
