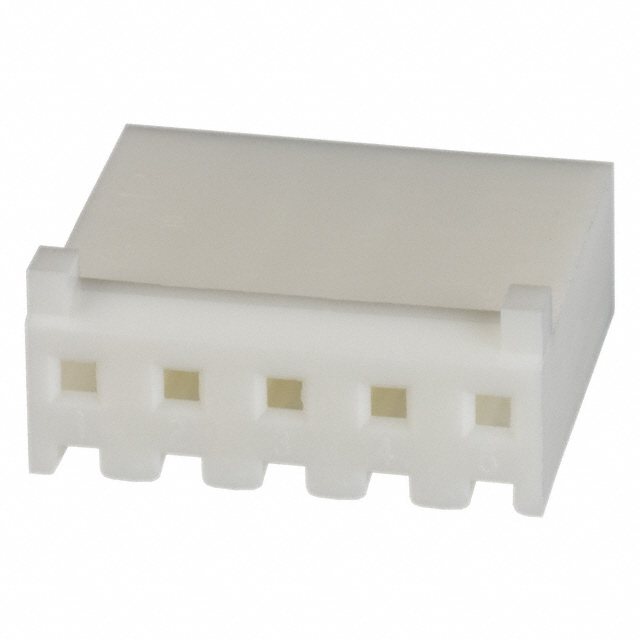

770849-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
770849-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 770849-5 | 770849 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Polarizing Key | Polarizing Key |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 4 - 24 positions |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.156 in | 0.156 in |
| Pitch [x] | 3.96 mm | 3.96 mm |
770849 Series
CONN RCPT HSG 22POS 3.96MM
| Part | Color | Number of Rows | Insulation Material | Mounting Type | Pitch [x] | Pitch [x] | Contact Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Features | Note | Number of Positions | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-770849-2 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 22 positions | Crimp |
TE Connectivity AMP Connectors 770849-5 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | Crimp | |
TE Connectivity AMP Connectors 1-770849-7 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | Crimp | |
TE Connectivity AMP Connectors 1-770849-0 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 10 | Crimp |
TE Connectivity AMP Connectors 2-770849-4 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 24 | Crimp |
TE Connectivity AMP Connectors 1-770849-2 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 12 | Crimp |
TE Connectivity AMP Connectors 1-770849-1 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 11 | Crimp |
TE Connectivity AMP Connectors 2-770849-0 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 20 | Crimp |
TE Connectivity AMP Connectors 770849-9 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 9 | Crimp |
TE Connectivity AMP Connectors 770849-4 | Natural | 1 | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 0.156 in | 3.96 mm | Female Socket | Locking Ramp | 105 ░C | -55 °C | Receptacle | Polarizing Key | Contacts Not Included | 4 | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.30 | |
| 10 | $ 0.26 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 5000 | $ 0.15 | |||
| 10000 | $ 0.13 | |||
Description
General part information
770849 Series
5 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
