General part information

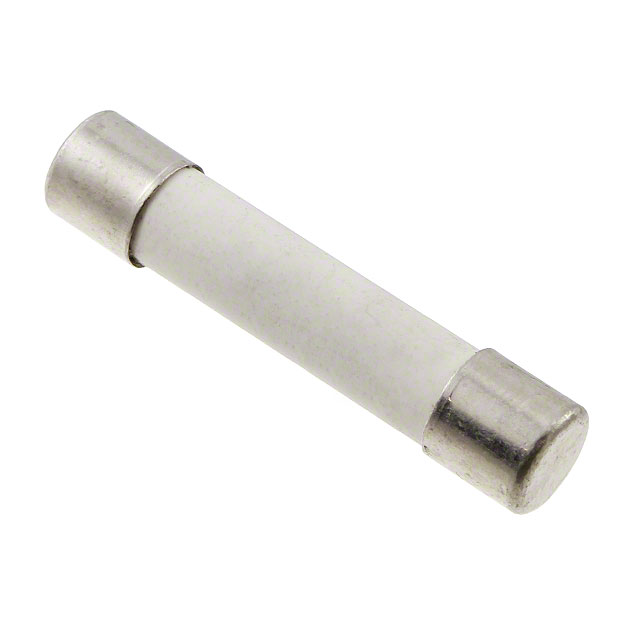

"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 8020.5021.G | 8020.5021 Series |
|---|---|---|
| Breaking Capacity @ Rated Voltage | 1 kA, 1.5 kA | 1 - 1.5 kA |
| Current Rating (Amps) | 10 A | 10 A |
| Fuse Type | Cartridge, Ceramic | Cartridge, Ceramic |
| Melting I˛t | 700 | 700 |
| Mounting Type | Requires Holder | Requires Holder, Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 3AB, 3AG | 3AB, 3AG |
| Package / Case [x] | 1/4 | 1/4 |
| Package / Case [y] | 1-1/4 | 1-1/4 |
| Response Time | Slow Blow | Slow Blow |
| Size / Dimension | - | 1.291 " |
| Size / Dimension | - | 32.8 mm |
| Size / Dimension [diameter] | 6.35 mm | 6.35 - 6.85 mm |
| Size / Dimension [diameter] | 0.25 in | 0.25 - 0.27 in |
| Size / Dimension [z] | 1.252 in | 1.252 in |
| Size / Dimension [z] | 31.8 mm | 31.8 mm |
| Voltage Rating - AC | 500 V | 500 V |
| Voltage Rating - DC | 400 V | 400 V |
"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage Rating - DC | Fuse Type | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Mounting Type | Response Time | Melting I˛t | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Package / Case | Package / Case [y] | Package / Case [x] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 8020.5021.G | 1.252 in | 31.8 mm | 6.35 mm | 0.25 in | 400 V | Cartridge, Ceramic | 1 kA, 1.5 kA | 10 A | Requires Holder | Slow Blow | 700 | 85 °C | -40 °C | 500 V | 3AB, 3AG | 1-1/4 | 1/4 | ||
SCHURTER Inc. 8020.5021.PT | 6.85 mm | 0.27 in | 400 V | Cartridge, Ceramic | 1 kA, 1.5 kA | 10 A | Through Hole | Slow Blow | 700 | 85 °C | -40 °C | 500 V | 3AB, 3AG | 1-1/4 | 1/4 | 1.291 " | 32.8 mm |
