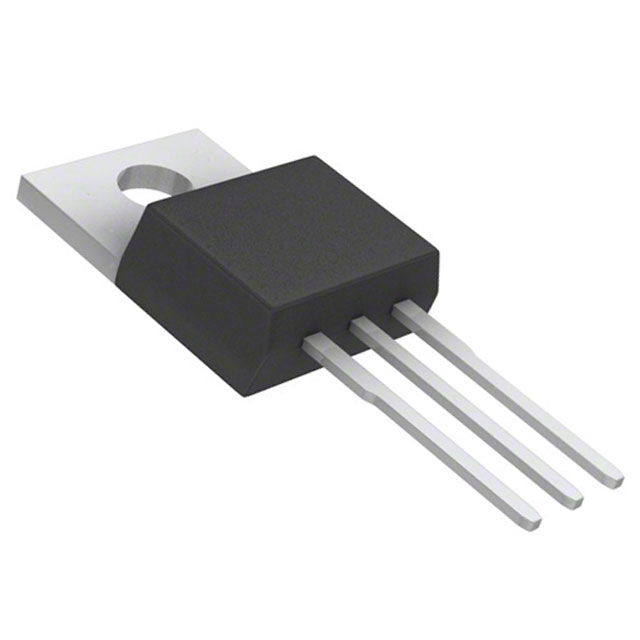

MBR20150CT-G

Active

Comchip Technology

DIODE ARR SCHOT 150V 20A TO220AB

Search across all available documentation for this part.

Active

Comchip Technology

DIODE ARR SCHOT 150V 20A TO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	MBR20150CT-G

Current - Average Rectified (Io) (per Diode)	20 A
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	1.05 V

DIODE ARR SCHOT 150V 20A TO220AB

Part	Package / Case	Supplier Device Package	Technology	Speed	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Comchip Technology MBR20150CT-G	TO-220-3	TO-220AB	Schottky	200 mA, 500 ns	1.05 V	Through Hole	1 Pair Common Cathode	20 A	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 0.96

General part information

Diode Array 1 Pair Common Cathode 150 V 20A Through Hole TO-220-3

Technical documentation and resources

No documents available
