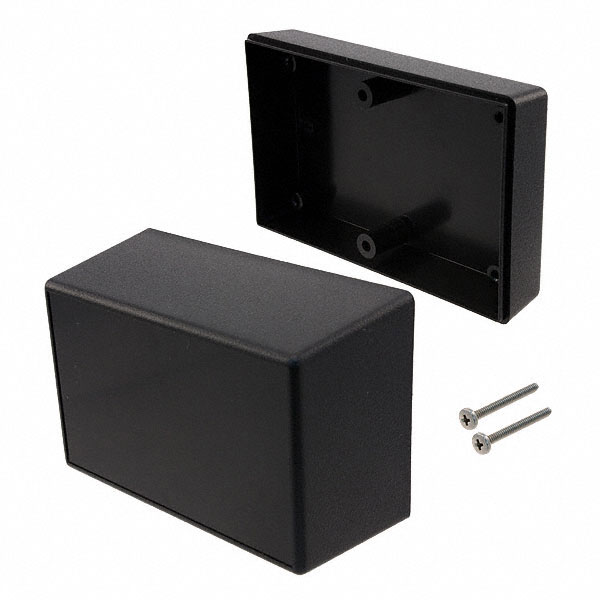

123I,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics for this part

Specification	123I,BK

Area (L x W)	10.7 in²
Area (L x W)	69 cm²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	104.14 mm
Size / Dimension [x]	4.1 "
Size / Dimension [y]	2.6 "
Size / Dimension [y]	66.04 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.173 lb
Weight	78.47 g

Part	Thickness	Thickness	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Container Type	Material	Design	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Features	Color	Material Flammability Rating	Weight	Weight	Ratings
Serpac 123I,GY	2.54 mm	0.1 in	2.6 "	66.04 mm	104.14 mm	4.1 "	Box	Plastic ABS	Hand Held Split Sides	63.5 mm	2.5 in	10.7 in²	69 cm²	PCB Supports	Gray	UL94 HB	0.173 lb	78.47 g	IP40 NEMA 1
Serpac 123I,AL	2.54 mm	0.1 in	2.6 "	66.04 mm	104.14 mm	4.1 "	Box	Plastic ABS	Hand Held Split Sides	63.5 mm	2.5 in	10.7 in²	69 cm²	PCB Supports	Almond	UL94 HB	0.173 lb	78.47 g	IP40 NEMA 1
Serpac 123I,BK	2.54 mm	0.1 in	2.6 "	66.04 mm	104.14 mm	4.1 "	Box	Plastic ABS	Hand Held Split Sides	63.5 mm	2.5 in	10.7 in²	69 cm²	PCB Supports	Black	UL94 HB	0.173 lb	78.47 g	IP40 NEMA 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.05

General part information

Box Plastic, ABS Black Hand Held, Split Sides 4.100" L x 2.600" W (104.14mm x 66.04mm) X 2.500" (63.50mm)

Technical documentation and resources

No documents available
