LL3301BF065QJ

Active

E-Switch

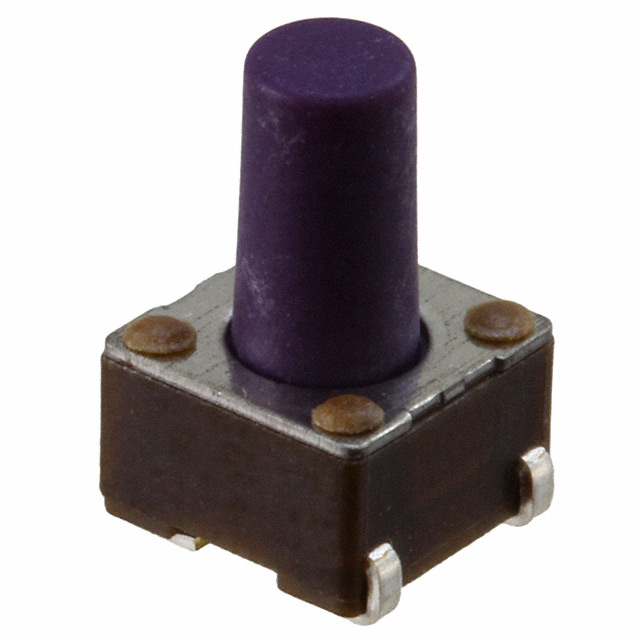

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LL3301BF065QJ

Actuator Height off PCB, Vertical	9.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	65 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	J Lead

Part	Illumination	Switch Function	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Actuator Type	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Operating Force	Mounting Type	Switch Travel	Outline [y]	Outline [x]	Mechanical Life	Actuator Height off PCB, Vertical
E-Switch LL3301SPF065QJ	Non-Illuminated	Off-Mom	7.5 mm	0.05 A 12 VDC	Plunger for Cap	SPST-NO	J Lead	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm
E-Switch LL3301DF065QJ	Non-Illuminated	Off-Mom	13 mm	0.05 A 12 VDC	Standard	SPST-NO	J Lead	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm
E-Switch LL3301BF065QJ-TR	Non-Illuminated	Off-Mom		0.05 A 12 VDC	Standard	SPST-NO	J Lead	-20 C	70 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm	5000000 Cycles	9.5 mm
E-Switch LL3301FF065QJ	Non-Illuminated	Off-Mom	7 mm	0.05 A 12 VDC	Standard	SPST-NO	J Lead	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm
E-Switch LL3301AF065QJ	Non-Illuminated	Off-Mom		0.05 A 12 VDC	Standard	SPST-NO	J Lead	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm		5 mm
E-Switch LL3301BF065QJ	Non-Illuminated	Off-Mom		0.05 A 12 VDC	Standard	SPST-NO	J Lead	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm		9.5 mm
E-Switch LL3301BF065QG	Non-Illuminated	Off-Mom		0.05 A 12 VDC	Standard	SPST-NO	Gull Wing	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm		9.5 mm
E-Switch LL3301NF065QG	Non-Illuminated	Off-Mom	4.3 mm	0.05 A 12 VDC	Standard	SPST-NO	Gull Wing	-30 ░C	85 °C	Top Actuated	65 gf	Surface Mount	0.25 mm	6 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
