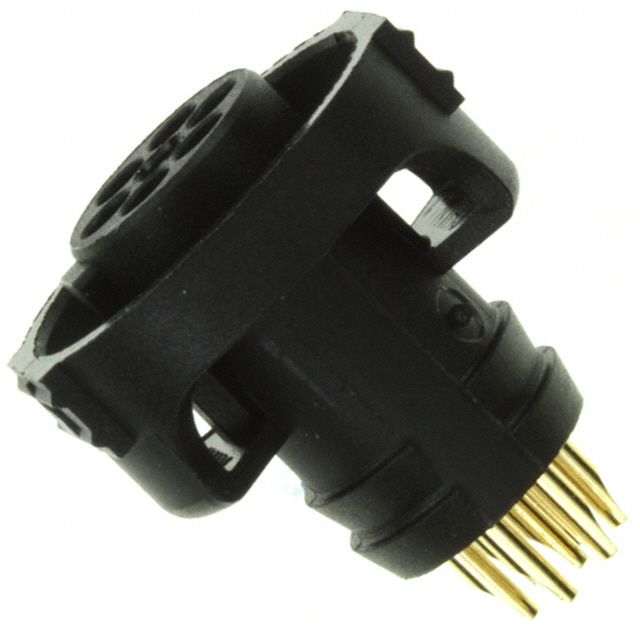

1445322-1

Obsolete

TE Connectivity Raychem Cable Protection

7 CONTACT(S), POLYETHYLENE, FEMALE, CIRCULAR CONNECTOR, SOLDER, PLUG

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

7 CONTACT(S), POLYETHYLENE, FEMALE, CIRCULAR CONNECTOR, SOLDER, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	1445322-1

Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Latch Lock
Features	Spring Probe
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature	105 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M9.5
Voltage Rating	250 VDC

Part	Number of Positions	Shell Size - Insert	Orientation	Ingress Protection	Operating Temperature	Current Rating (Amps)	Fastening Type	Connector Type	Contact Finish - Mating	Features	Voltage Rating	Primary Material	Mounting Type
TE Connectivity Raychem Cable Protection 1445322-4	6	M9.5	Keyed	IP65 - Dust Tight Water Resistant	105 °C	2 A	Latch Lock	Female Sockets Plug	Gold	Spring Probe	250 VDC	Plastic	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1445322-3	6	M9.5	Keyed	IP65 - Dust Tight Water Resistant	105 °C	2 A	Latch Lock	Female Sockets Plug	Gold	Spring Probe	250 VDC	Plastic	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1445322-1	7	M9.5	Keyed	IP65 - Dust Tight Water Resistant	105 °C	2 A	Latch Lock	Female Sockets Plug	Gold	Spring Probe	250 VDC	Plastic	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Plug, Female Sockets Solder Cup
