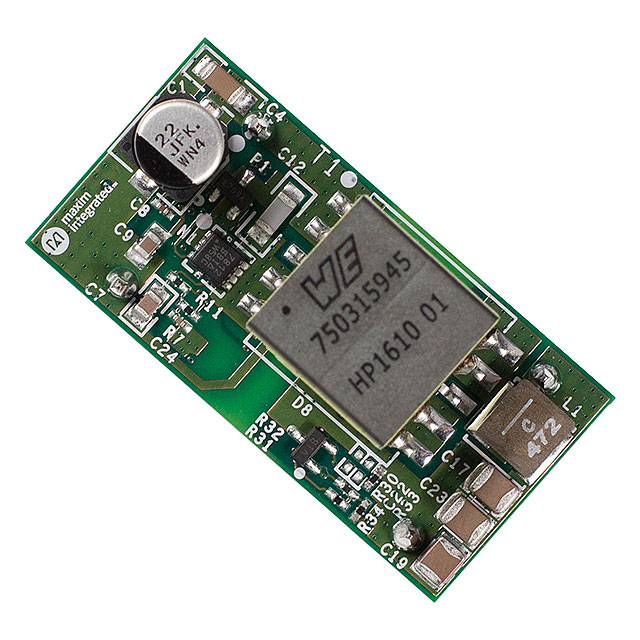

MAXREFDES114A#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX17599
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXREFDES114A#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX17599
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXREFDES114A# | MAXREFDES114 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Contents | - | Board(s) |
| Current - Output | 2 A | 2 A |
| Frequency - Switching | 350 kHz | 350 kHz |
| Main Purpose | DC/DC Converter | DC/DC Converter |
| Outputs and Type | Isolated | Isolated, 1 Isolated Output |
| Outputs and Type | 1 | 1 |
| Power - Output | 10 W | 10 W |
| Regulator Topology | Flyback | Flyback |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | MAX17599 | MAX17599 |
| Voltage - Input [Max] | 36 V | 36 V |
| Voltage - Input [Min] | 17 V | 17 V |
| Voltage - Output | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.15 | |
MAXREFDES114 Series
EVAL BOARD FOR MAX17599
| Part | Main Purpose | Utilized IC / Part | Supplied Contents | Voltage - Input [Min] | Voltage - Input [Max] | Board Type | Current - Output | Voltage - Output | Power - Output | Frequency - Switching | Outputs and Type | Outputs and Type | Regulator Topology | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXREFDES114D# | DC/DC Converter | MAX17599 | Board(s) | 17 V | 36 V | Fully Populated | 2 A | 5 V | 10 W | 350 kHz | Isolated | 1 | Flyback | |
Analog Devices Inc./Maxim Integrated MAXREFDES114B# | DC/DC Converter | MAX17599 | Board(s) | 17 V | 36 V | Fully Populated | 2 A | 5 V | 10 W | 350 kHz | Isolated | 1 | Flyback | |
Analog Devices Inc./Maxim Integrated MAXREFDES114C# | DC/DC Converter | MAX17599 | 17 V | 36 V | 2 A | 5 V | 10 W | 350 kHz | 1 Isolated Output | Flyback | Board(s) | |||
Analog Devices Inc./Maxim Integrated MAXREFDES114A# | DC/DC Converter | MAX17599 | Board(s) | 17 V | 36 V | Fully Populated | 2 A | 5 V | 10 W | 350 kHz | Isolated | 1 | Flyback |
Description
General part information
MAXREFDES114 Series
MAX17599 - DC/DC Converter 1, Isolated Outputs Evaluation Board
