HDF-V26-113L051

Active

NorComp Inc.

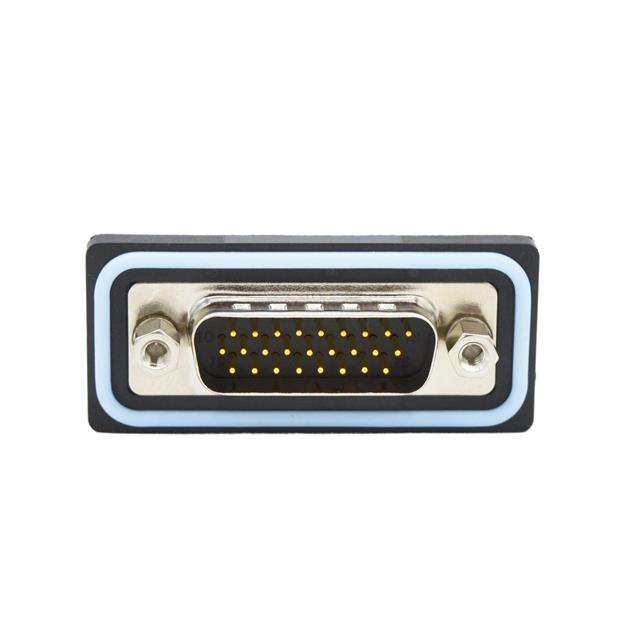

CONN D-SUB HD PLUG 26POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-V26-113L051

Active

NorComp Inc.

CONN D-SUB HD PLUG 26POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDF-V26-113L051	HDF-V26 Series

Color	Black	Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Plug, Male Pins	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	26	26
Number of Rows	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	2	2
Shell Size, Connector Layout	(DA, A) High Density	(DA, A) High Density
Termination	Solder	Solder

HDF-V26 Series

D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 26 CONTACTS, DA, SOLDER

Part	Number of Rows	Shell Material, Finish	Contact Material	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Dielectric Material	Flange Feature	Mounting Type	Color	Connector Type	Number of Positions	Contact Type	Material Flammability Rating	Shell Size, Connector Layout	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Ingress Protection	Termination	Current Rating (Amps)	Features	Contact Finish Thickness
NorComp Inc. HDF-V26-213L052	3	Nickel Plated, Steel	Brass	D-Sub, High Density	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Receptacle, Female Sockets	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A
NorComp Inc. HDF-V26-113L052	3	Nickel Plated, Steel	Brass	D-Sub, High Density	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Male Pins, Plug	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A	Board Lock, Grounding Indents
NorComp Inc. HDF-V26-113L051	3	Nickel Plated, Steel	Brass	D-Sub, High Density			Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Male Pins, Plug	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A	Board Lock, Grounding Indents	Flash
NorComp Inc. HDF-V26-113L012	3	Nickel Plated, Steel	Brass	D-Sub, High Density	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Male Pins, Plug	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A	Grounding Indents
NorComp Inc. HDF-V26-213L012	3	Nickel Plated, Steel	Brass	D-Sub, High Density	0.76 Ám	30 Áin	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Receptacle, Female Sockets	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A
NorComp Inc. HDF-V26-113L011	3	Nickel Plated, Steel	Brass	D-Sub, High Density			Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Male Pins, Plug	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A	Grounding Indents	Flash
NorComp Inc. HDF-V26-213L011	3	Nickel Plated, Steel	Brass	D-Sub, High Density			Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Receptacle, Female Sockets	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A		Flash
NorComp Inc. HDF-V26-213L051	3	Nickel Plated, Steel	Brass	D-Sub, High Density			Polybutylene Terephthalate (PBT)	Female Screwlock (4-40), Mating Side	Panel Mount, Through Hole	Black	Receptacle, Female Sockets	26	Signal	UL94 V-0	2	(DA, A) High Density	-25 °C	85 °C	Gold	IP67 - Dust Tight, Waterproof	Solder	3 A		Flash
