881607-2

Active

TE Connectivity AMP Connectors

.110S FASTON REC.

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

.110S FASTON REC.

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

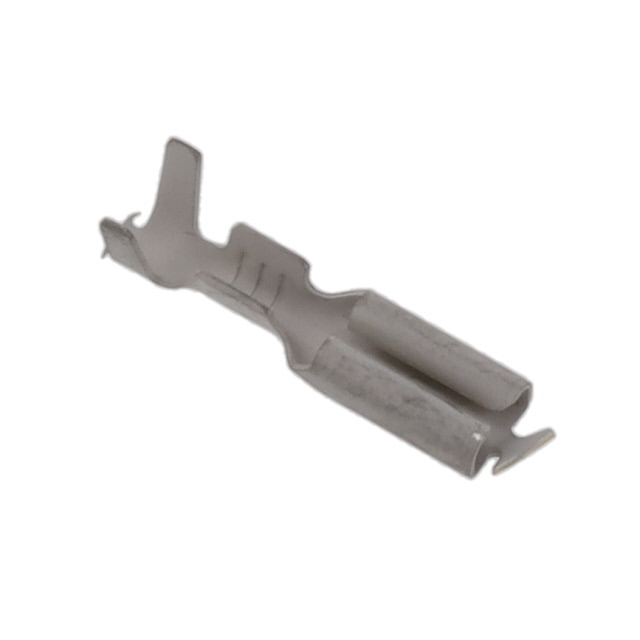

0.110" (2.79mm) Quick Connect Female 17-20 AWG Crimp Connector Non-Insulated

Technical documentation and resources

Specification	881607-2	881607 Series

Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	0.106 "	0.106 "
Insulation Diameter [Max] [diameter]	2.69 mm	2.69 mm
Insulation Diameter [Min] [diameter]	2 mm	2 mm
Insulation Diameter [Min] [diameter]	0.079 in	0.079 in
Length - Overall [x]	14.59 mm	14.59 mm
Length - Overall [x]	0.574 in	0.574 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Length	0.248 in	0.248 in
Tab Length	6.3 mm	6.3 mm
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	2.79 mm	2.79 mm
Tab Width	0.11 "	0.11 "
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	20 AWG	20 AWG
Wire Gauge [Min]	17 AWG	17 AWG

Part	Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Contact Material	Tab Width	Tab Width	Insulation	Tab Length	Tab Length	Terminal Type
TE Connectivity AMP Connectors 881607-2	Crimp	0.106 "	2.69 mm	2 mm	0.079 in	Free Hanging (In-Line)	Tin	14.59 mm	0.574 in	Female	17 AWG	20 AWG	0.032 in	0.81 mm	Brass	2.79 mm	0.11 "	Non-Insulated	0.248 in	6.3 mm	Standard
TE Connectivity AMP Connectors 881607-1	Crimp	0.106 "	2.69 mm	2 mm	0.079 in	Free Hanging (In-Line)		14.59 mm	0.574 in	Female	17 AWG	20 AWG	0.032 in	0.81 mm	Brass	2.79 mm	0.11 "	Non-Insulated	0.248 in	6.3 mm	Standard
