C5775.31.02

Active

Prysmian Group

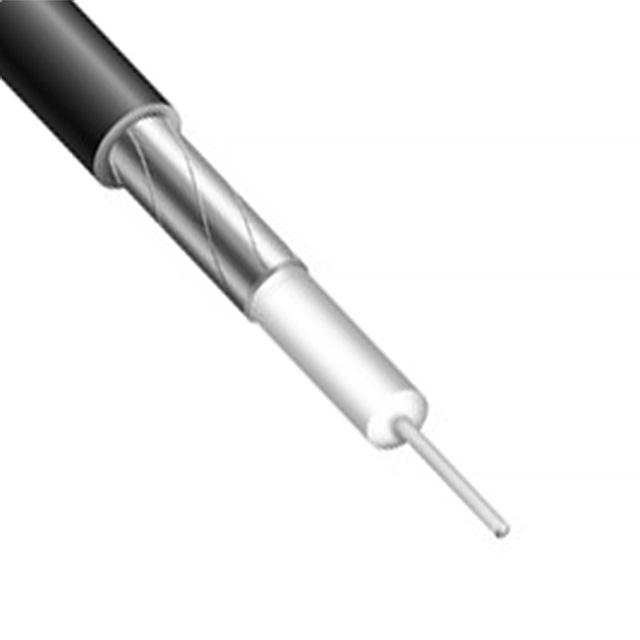

CABLE COAXIAL RG6 18AWG

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG6 18AWG

Technical Specifications

Parameters and characteristics for this part

Specification	C5775.31.02

Cable Group	RG-6
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	4.5 mm
Dielectric Diameter [diameter]	0.177 "
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.263 in
Jacket (Insulation) Diameter [diameter]	6.68 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length	304.8 m
Length	1000 ft
Shield Coverage	60%, 100%
Shield Material	Flexfoil®, Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	85
Wire Gauge	18 AWG

Part	Shield Coverage	Shield Type	Wire Gauge	Conductor Strand	VoP, Velocity of Propagation	Shield Material	Dielectric Material	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Usage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Jacket (Insulation) Material	Cable Group	Wire Gauge	Length [x]	Length [x]	Length	Length
Prysmian Group C5775.46.01	100% 60%	Braid Foil	18 AWG	Solid	83	Flexfoil® Aluminum	Foam Polyethylene (FPE)	75 Ohms	6.99 mm	0.275 in	Black	Copper Coated Steel	CATV	0.18 in	4.57 mm	Coaxial	Poly-Vinyl Chloride (PVC)	RG-6
Prysmian Group C5775.31.01	100% 60%	Braid Foil	18 AWG 18 AWG	Solid	85	Flexfoil® Aluminum		75 Ohms	6.68 mm	0.263 in	Black	Copper Coated Steel	CATV	0.177 "	4.5 mm	Coaxial	Poly-Vinyl Chloride (PVC)	RG-6	0.82 mm˛	100 ft	30.48 m	304.8 m	1000 ft
Prysmian Group C5775.41.02	100% 60%	Braid Foil	18 AWG 18 AWG	Solid	85	Flexfoil® Aluminum		75 Ohms	6.68 mm	0.263 in		Copper Coated Steel	CATV	0.177 "	4.5 mm	Coaxial	Poly-Vinyl Chloride (PVC)	RG-6	0.82 mm˛			152.4 m 304.8 m	1000 ft 6000 in
Prysmian Group C5775.27.02	100% 60%	Braid Foil	18 AWG	Solid	85	Flexfoil® Aluminum		75 Ohms	6.68 mm	0.263 in		Copper Coated Steel	CATV	0.177 "	4.5 mm	Coaxial	Poly-Vinyl Chloride (PVC)	RG-6				152.4 m	6000 in
Prysmian Group C5775.31.02	100% 60%	Braid Foil	18 AWG	Solid	85	Flexfoil® Aluminum		75 Ohms	6.68 mm	0.263 in		Copper Coated Steel	CATV	0.177 "	4.5 mm	Coaxial	Poly-Vinyl Chloride (PVC)	RG-6				304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 18 AWG (0.82mm²) RG-6 1000.0' (304.80m) 75 Ohms
