MS14M23G15
ActiveAmphenol Sine Systems Corp

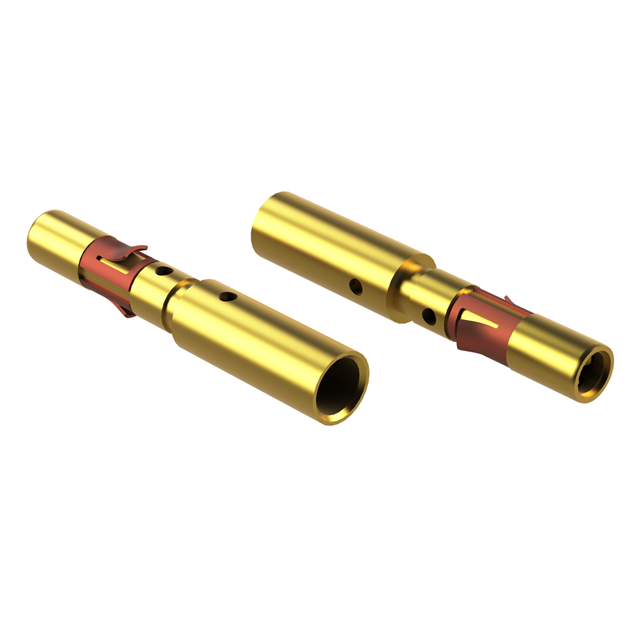

SOCKET CONTACT, MACHINED, SIZE 1
Deep-Dive with AI
Search across all available documentation for this part.
MS14M23G15
ActiveAmphenol Sine Systems Corp
SOCKET CONTACT, MACHINED, SIZE 1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS14M23G15 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Size | 16 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Termination Finish | Nickel |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 16 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1000 | $ 1.30 | |
Description
General part information
MS14 Series
Socket Contact 14-16 AWG Size 16 Crimp Gold
