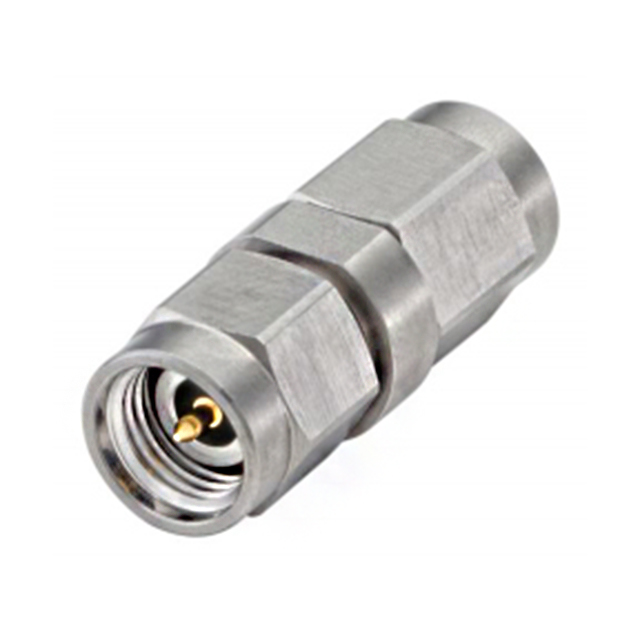

02S109-S00S3

Active

Rosenberger

PRECISION 2.92/2.40 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92/2.40 ADAPTER

Technical Specifications

Parameters and characteristics for this part

PRECISION 2.92/2.40 ADAPTER

Part	Convert To (Adapter End)	Mounting Type	Body Material	Adapter Series	Conversion Type	Mating Cycles	Frequency - Max [Max]	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Adapter Type	Style	Convert From (Adapter End)	Center Gender	Center Contact Material	Insertion Loss	Center Contact Plating	Impedance
Rosenberger 02S109-S00S3	2.4mm (APC-2.4, OS-50) Plug, Male Pin	Free Hanging (In-Line)	Stainless Steel	RPC-2.92 to RPC-2.40	Between Series	500	40 GHz	Polystyrene (PS)	85 °C	-40 °C	Plug to Plug	Straight	2.92 mm	Male to Male	Beryllium Copper	0.32 dB	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 347.71

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
