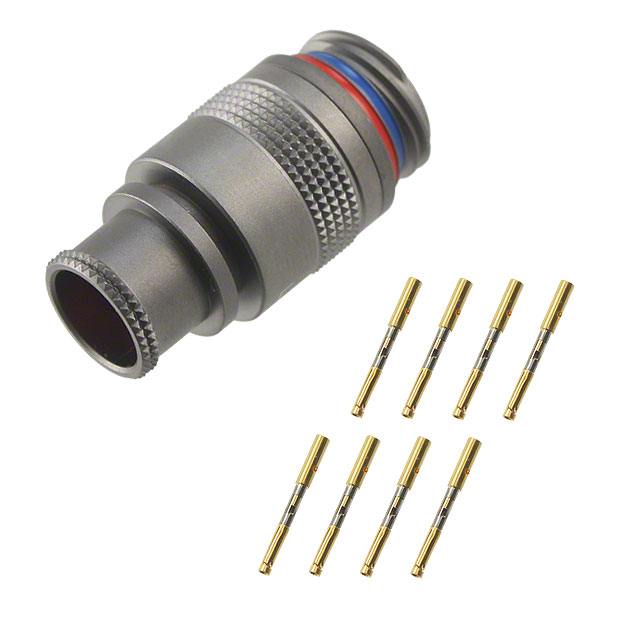

PMN.1M.308.XLMT

Active

LEMO

CONN RCPT FMALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PMN.1M.308.XLMT

Applications	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	9.7 mm
Cable Opening [custom]	0.382 in
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	5 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

CONN RCPT FMALE 8POS GOLD CRIMP

Part	Current Rating (Amps)	Shell Size - Insert	Orientation	Connector Type	Contact Material	Insert Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Ingress Protection	Contact Finish - Mating	Termination	Shell Material	Color	Mounting Type	Shell Finish
LEMO PMN.1M.308.XLMT	5 A	308	N	Receptacle, Female Sockets	Bronze	Polyetheretherketone (PEEK)	Aerospace, Automotive, Aviation, Military	-55 °C	200 °C	59 Áin	1.5 Ám	Shielded	Metal	9.7 mm	0.382 in	8	IP68 - Dust Tight, Waterproof	Gold	Crimp	Aluminum Alloy	Gray	Free Hanging (In-Line)	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.22

General part information

8 Position Circular Connector Receptacle, Female Sockets Crimp
