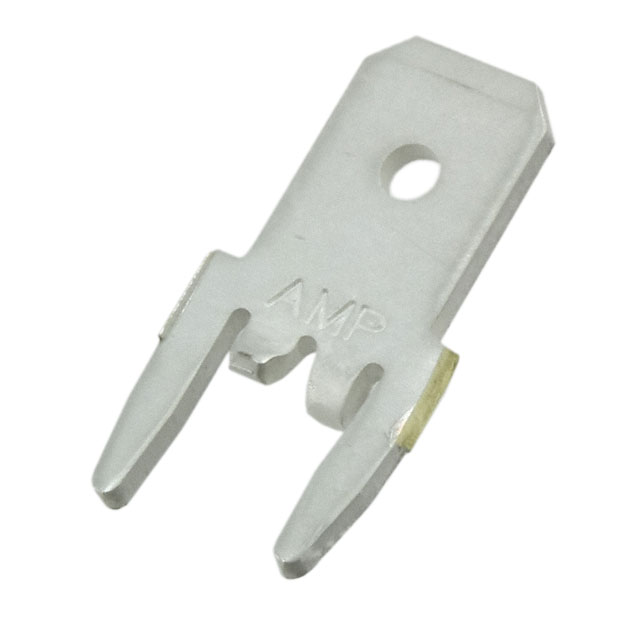

1217133-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
1217133-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217133-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.49 in |
| Length - Overall [x] | 12.45 mm |
| Mounting Type | Through Hole |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.14 | |
| 10 | $ 0.12 | |||
| 25 | $ 0.11 | |||
| 50 | $ 0.10 | |||
| 100 | $ 0.10 | |||
| 250 | $ 0.09 | |||
| 500 | $ 0.09 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.07 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| 20000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
1217133 Series
CONN QC TAB 0.187 SOLDER
| Part | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Insulation | Tab Width | Tab Width | Terminal Type | Termination | Mounting Type | Length - Overall [x] | Length - Overall [x] | Contact Finish | Gender | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217133-1 | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Non-Insulated | 4.75 mm | 0.187 in | Standard | Solder | Through Hole | 0.49 in | 12.45 mm | Tin | Male | Brass |
Description
General part information
1217133 Series
0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
