K11MA7-P05LJG0-3930

Active

ODU

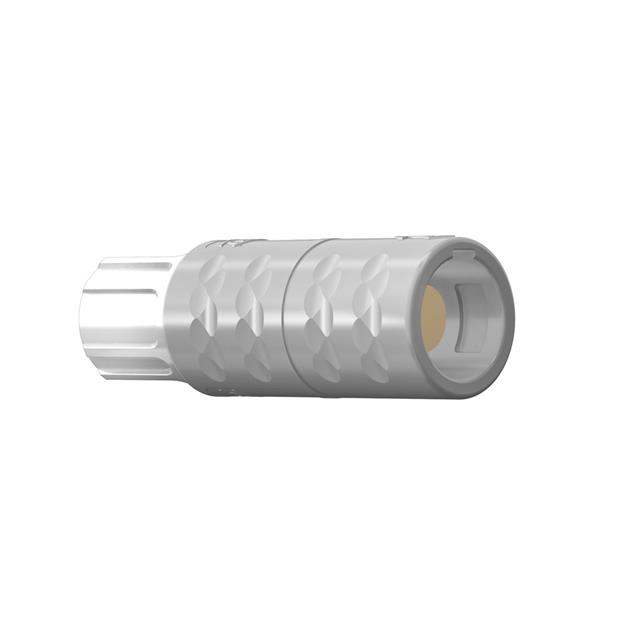

CONN RCPT FMALE 5P GOLD SLDR CUP

K11MA7-P05LJG0-3930

Active

ODU

CONN RCPT FMALE 5P GOLD SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

K11MA7-P Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	K11MA7-P05LJG0-3930

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Backshell Material, Plating	Polysulfone (PSU)
Cable Opening (Max)	0.154 in
Cable Opening (Min)	0.106 in
Color	Gray, White
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull, Detent Lock
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder Cup

K11MA7-P Series

...

Part	Shell Size - Insert	Shell Size - Insert	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Insert Material	Color	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Fastening Type	Backshell Material, Plating	Shell Material	Mounting Type	Cable Opening (Max)	Cable Opening (Min)	Primary Material	Current Rating	Contact Finish - Mating	Contact Material	Applications	Termination	Features	Shielding
ODU K11MA7-P09LCC0-6580	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Black Gray	Female Sockets Receptacle	120 °C	-50 °C	9	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.256 in	0.209 in	Plastic	2.75 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P02LPH0-3920	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Red	Female Sockets Receptacle	120 °C	-50 °C	2	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	14 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P07LFD0-6540	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Yellow	Female Sockets Receptacle	120 °C	-50 °C	7	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.256 in	0.209 in	Plastic	4.55 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P14LCC0-3920	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Red	Female Sockets Receptacle	120 °C	-50 °C	14	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	2.5 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P08LFD0-3950	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Green	Female Sockets Receptacle	120 °C	-50 °C	8	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	3.85 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P14LCC0-3980	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Black Gray	Female Sockets Receptacle	120 °C	-50 °C	14	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	2.5 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P08LFD0-5240	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Yellow	Female Sockets Receptacle	120 °C	-50 °C	8	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.205 in	0.157 in	Plastic	3.85 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P02LPH0-5240	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray Yellow	Female Sockets Receptacle	120 °C	-50 °C	2	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.205 in	0.157 in	Plastic	14 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P05LJG0-3930	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Gray White	Female Sockets Receptacle	120 °C	-50 °C	5	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	7.5 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
ODU K11MA7-P10LCC0-3960	1	1	Dust Protected	IP50	A	PEEK Polyetheretherketone	Blue Gray	Female Sockets Receptacle	120 °C	-50 °C	10	Detent Lock Push-Pull	Polysulfone (PSU)	Polysulfone (PSU)	Free Hanging (In-Line)	0.154 in	0.106 in	Plastic	2.75 A	Gold	Brass	Industrial Medical Military Testing Equipment & Measurement	Solder Cup	Backshell	Unshielded
