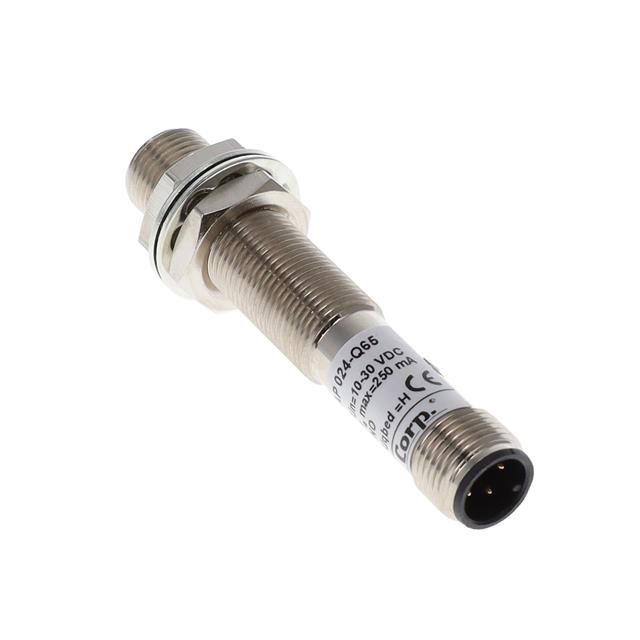

AIS12F04AP024-Q65

Active

Altech Corporation

SENSOR PROX INDUCTIVE 4MM CYLIND

Search across all available documentation for this part.

Active

Altech Corporation

SENSOR PROX INDUCTIVE 4MM CYLIND

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AIS12F04AP024-Q65	AIS12F04 Series

Indicator [custom]	LED	LED
Ingress Protection	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4	NEMA 3, NEMA 1, NEMA 12, IP67, NEMA 13, NEMA 6, NEMA 4
Material - Body	Nickel-Plated Brass	Nickel-Plated Brass
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Type	PNP-NO, 3-Wire	PNP-NO, 3-Wire, NPN-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12	Cylinder, Threaded - M12
Response Frequency	1 kHz	1 kHz
Sensing Distance	4 mm	4 mm
Sensing Distance	0.157 in	0.157 in
Sensor Type	Inductive	Inductive
Shielding	Shielded	Shielded
Termination Style	Connector	Cable Leads, Connector
Voltage - Supply [Max]	30 VDC	30 VDC
Voltage - Supply [Min]	10 VDC	10 VDC

SENSOR PROX INDUCTIVE 4MM CYLIND

Part	Response Frequency	Sensing Distance	Sensing Distance	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Shielding	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Termination Style	Material - Body	Sensor Type	Indicator [custom]
Altech Corporation AIS12F04AP024-2M	1 kHz	4 mm	0.157 in	70 °C	-25 °C	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Shielded	PNP-NO, 3-Wire	30 VDC	10 VDC	Cylinder, Threaded - M12	Cable Leads	Nickel-Plated Brass	Inductive	LED
Altech Corporation AIS12F04AN024-Q65	1 kHz	4 mm	0.157 in	70 °C	-25 °C	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Shielded	NPN-NO, 3-Wire	30 VDC	10 VDC	Cylinder, Threaded - M12	Connector	Nickel-Plated Brass	Inductive	LED
Altech Corporation AIS12F04AP024-Q65	1 kHz	4 mm	0.157 in	70 °C	-25 °C	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Shielded	PNP-NO, 3-Wire	30 VDC	10 VDC	Cylinder, Threaded - M12	Connector	Nickel-Plated Brass	Inductive	LED
Altech Corporation AIS12F04AN024-2M	1 kHz	4 mm	0.157 in	70 °C	-25 °C	IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 6	Shielded	NPN-NO, 3-Wire	30 VDC	10 VDC	Cylinder, Threaded - M12	Cable Leads	Nickel-Plated Brass	Inductive	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.93

General part information

SENSOR PROX INDUCTIVE 4MM CYLIND

Technical documentation and resources

No documents available
