AHN12224

Obsolete

Panasonic Electric Works

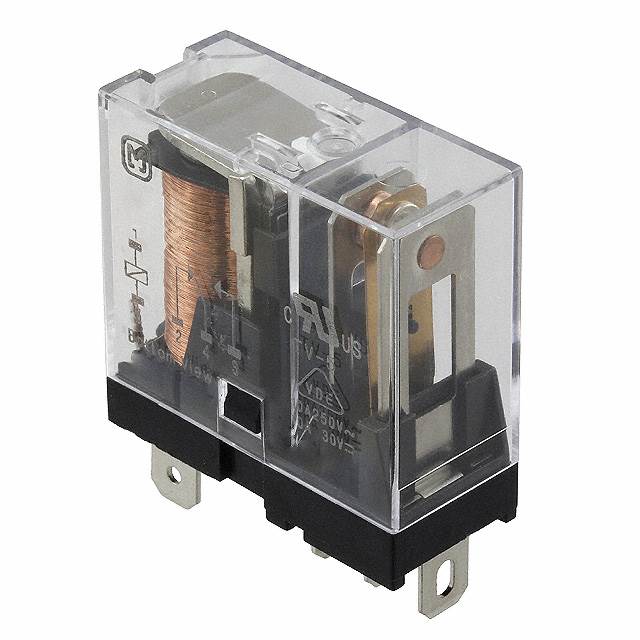

RELAY GEN PURPOSE SPDT 16A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPDT 16A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Contact Rating (Current)	Mounting Type	Contact Form	Coil Voltage	Must Operate Voltage	Termination Style	Operate Time	Relay Type	Switching Voltage [Max]	Must Release Voltage	Coil Current	Release Time	Features	Contact Material	Load - Max Switching
Panasonic Electric Works AHN12212	cURus VDE	Non Latching	-40 °C	70 °C	270 Ohms	16 A	Socketable	SPDT (1 Form C)	12 VDC	8.4 VDC	Plug In	15 ms	General Purpose	30 VDC 250 VAC	1.8 VDC	44.4 mA	20 ms	Diode	Silver Tin Oxide (AgSnO)	480 W 4000 VA
Panasonic Electric Works AHN12224	cURus VDE	Non Latching	-40 °C	70 °C	1.09 kOhms	16 A	Socketable	SPDT (1 Form C)	24 VDC	16.8 VDC	Plug In	15 ms	General Purpose	30 VDC 250 VAC	3.6 VDC	22 mA	20 ms	Diode	Silver Tin Oxide (AgSnO)	480 W 4000 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
