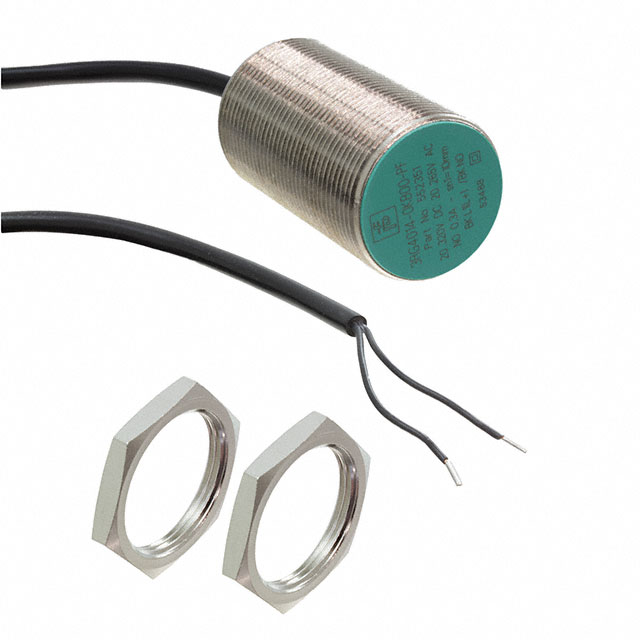

3RG4014-0KB00-PF

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM NO

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM NO

Technical Specifications

Parameters and characteristics for this part

INDUCTIVE SEN 10MM NO

Part	Response Frequency	Indicator [custom]	Material - Body	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Sensing Distance	Sensing Distance	Shielding	Output Type	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type
PEPPERL+FUCHS 3RG4014-0KB00-PF	200 Hz	LED	Brass	Cylinder, Threaded - M30	-25 °C	85 °C	Cable	0.394 in	10 mm	Unshielded	SCR-NO, 2-Wire	IP67	265 VAC, 320 VDC	20 VAC, 20 VDC	Inductive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 10MM NO
