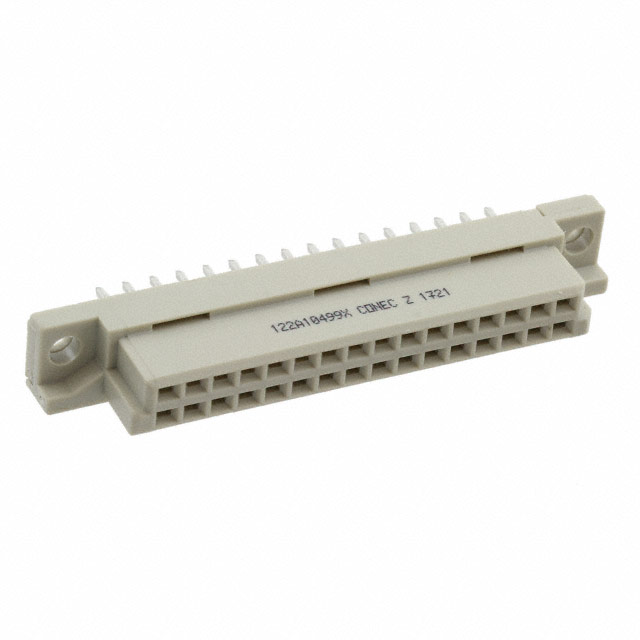

122A10499X

Active

Amphenol CONEC

CONN DIN RCPT 32POS PNL MNT GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

122A10499X

Active

Amphenol CONEC

CONN DIN RCPT 32POS PNL MNT GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	122A10499X

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Level, Class	3
Material - Insulation	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B/2
Style	1/2 B
Termination	Solder

122A104 Series

Part	Termination	Contact Finish	Material - Insulation	Number of Positions Loaded [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Style	Current Rating (Amps)	Level, Class	Connector Type	Number of Rows	Material Flammability Rating	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions Loaded	Number of Positions	Number of Positions Loaded
Amphenol CONEC 122A10479X	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	16	-55 °C	125 °C	B/2	1/2 B	2 A	3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Through Hole
Amphenol CONEC 122A10439X	Wire Wrap	Gold	Polybutylene Terephthalate (PBT) Glass Filled		-55 °C	125 °C	B/2	1/2 B	2 A	3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Through Hole	32
Amphenol CONEC 122A10409X	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled		-55 °C	125 °C	C		2 A	3	Receptacle Female Sockets	3	UL94 V-0	2.54 mm	0.1 in	Through Hole Press-Fit	96	96
Amphenol CONEC 122A10419X	Wire Wrap	Gold	Polybutylene Terephthalate (PBT) Glass Filled	16	-55 °C	125 °C	B/2	1/2 B	2 A	3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Through Hole
Amphenol CONEC 122A10429X	Wire Wrap	Gold	Polybutylene Terephthalate (PBT) Glass Filled	16	-55 °C	125 °C	B/2	1/2 B	2 A	3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Through Hole
Amphenol CONEC 122A10489X	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	16	-55 °C	125 °C	B/2	1/2 B	2 A	3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Through Hole
Amphenol CONEC 122A10499X	Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled		-55 °C	125 °C	B/2	1/2 B		3	Receptacle Female Sockets	2	UL94 V-0	2.54 mm	0.1 in	Panel Mount Through Hole			All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.62
		10	$ 3.29
		100	$ 2.90
		500	$ 2.55

Description

General part information

122A104 Series

32 Position Din Connector Receptacle, Female Sockets Gold Panel Mount, Through Hole
