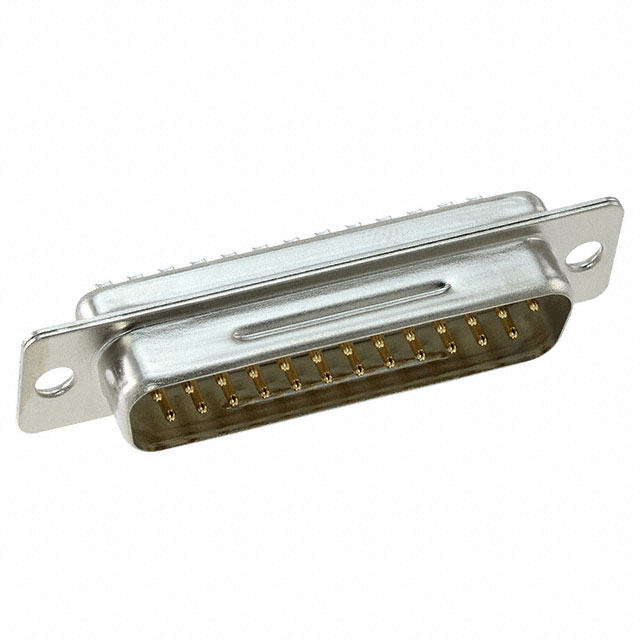

XM3A-2521
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 25POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
XM3A-2521
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB PLUG 25POS SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XM3A-2521 | XM3A Series |
|---|---|---|
| Color | White | White |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 16 µin | 16 µin |
| Contact Finish Thickness | 0.41 µm | 0.41 µm |
| Contact Material | Brass | Brass, Phosphor Bronze |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 5 A | 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Shielded | Shielded |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | - | 15 - 37 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout | - | 2 |
| Shell Size, Connector Layout | - | 4 (DC, C) |
| Shell Size, Connector Layout [custom] | DB, B | DB, B |
| Shell Size, Connector Layout [custom] | 3 | 3 |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge | - | 28 AWG |
| Wire Gauge | - | 22 AWG |
XM3A Series
CONN D-SUB PLUG 15POS SLDR CUP
| Part | Material Flammability Rating | Color | Contact Type | Dielectric Material | Shell Material, Finish | Connector Type | Features | Number of Positions | Flange Feature | Voltage Rating | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Mounting Type | Contact Material | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div XM3A-1521 | UL94 V-0 | White | Signal | Polybutylene Terephthalate (PBT), Glass Filled | Nickel Plated, Steel | Male Pins, Plug | Shielded | 15 | Housing/Shell (Unthreaded) | 300 VDC | 2 | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Brass | 2 | 16 µin | 0.41 µm | D-Sub | 5 A | |||||
Omron Electronics Inc-EMC Div XM3A-2521 | UL94 V-0 | White | Signal | Polybutylene Terephthalate (PBT), Glass Filled | Nickel Plated, Steel | Male Pins, Plug | Shielded | Housing/Shell (Unthreaded) | 300 VDC | 2 | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Brass | 16 µin | 0.41 µm | D-Sub | 5 A | B, DB | 3 | |||||
Omron Electronics Inc-EMC Div XM3A-3721 | UL94 V-0 | White | Signal | Polybutylene Terephthalate (PBT), Glass Filled | Nickel Plated, Steel | Male Pins, Plug | Shielded | 37 | Housing/Shell (Unthreaded) | 300 VDC | 2 | 105 ░C | -55 °C | Gold | Free Hanging (In-Line) | Phosphor Bronze | 16 µin | 0.41 µm | D-Sub | 5 A | 4 (DC, C) | 28 AWG | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.47 | |
| 1 | $ 23.33 | |||
| 10 | $ 20.43 | |||
| 10 | $ 20.80 | |||
| 25 | $ 19.49 | |||
| 25 | $ 19.55 | |||
| 50 | $ 18.56 | |||
| 50 | $ 18.92 | |||
| 100 | $ 17.68 | |||
| 100 | $ 18.29 | |||
| 250 | $ 16.57 | |||
| 250 | $ 17.28 | |||
| 450 | $ 15.90 | |||
| 450 | $ 16.77 | |||
Description
General part information
XM3A Series
25 Position D-Sub Plug, Male Pins Connector
